vThing - CO2 Monitor - Dual Beam - Wifi
License:
TAPR Open Hardware License
Created:
8 years ago
Updated:
8 years ago
Views:
5024
0 Collect
0 Comments
Share
212 Download (4.67 MB)
Donate to support Open Hardware

Short Summary

Monitoring CO2 is a trending topic, yet there are few things the current devices lack, so i opted to change this:

  • Calibration - Most existing CO2 Monitors need to see fresh air each few days to do some internal calibration. With a Dual Beam NDIR sensor this is no longer necessary. The sensor can be operated also in places that seldom see fresh air, so that the real CO2 value is always correct.
  • Connectivity - The device can be easily integrated with any existing Home Automation System over HTTP or MQTT. Also native connectivity to some online services like Thingspeak, Ubidots, IFTTT is available

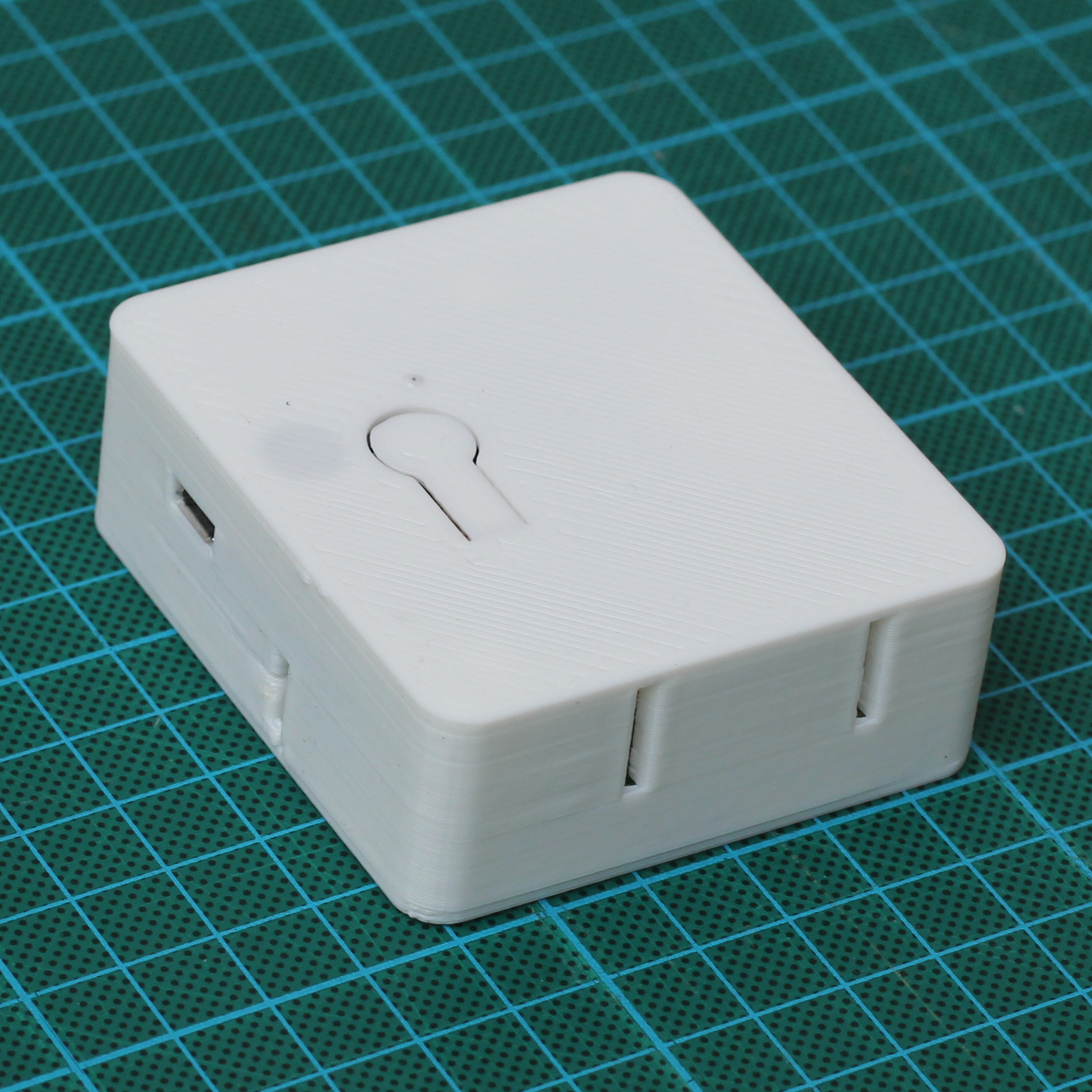

  • Price - By optimizing the device for price, you will get a sleek 3D Printed enclosure, no paper box to throw away and no lost money due to marketing campaigns.

Crowdfunding campaign

I am also running currently a crowdfunding campaign for devices to end-users. Whoever is interested, you may look it up here: https://www.indiegogo.com/projects/vthings-co2-monitor-dual-beam-wifi--2/x/10721175#/

More Details

Some additional details about the device: The sensor that is used is this one http://www.gassensor.com.cn/product_detail_en/Infrared_CO2_Sensor/CM1101 I can also sell single units as i have ordered a big bunch from the chineese manufacturer

  • Connectivity: Wifi (using EPS8266 module)
  • Indication: RGB LED used to display device status
  • Sensor Type: NDIR (Dual Beam)
  • Range: 0-5000 ppm
  • Resolution: 10 ppm
  • Accuracy: +/- (40ppm +2%) readings
  • Response time T90: 30s
  • Repeatability: <2%
  • Sampling Method: Diffusion
  • Working temperature: 0 - 50 degrees Celsius
  • Lifespan: >10 years
  • Power: Micro USB

Sources

All sources and libraries are put here: https://github.com/vlast3k/vThingCO2DualBeamOSHW/tree/master/src
