Secret USB-TTL
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
8 years ago
Updated:
8 years ago
Views:
3672
4 Collect
0 Comments
Share
278 Download (2.29 MB)
Donate to support Open Hardware

Decsription

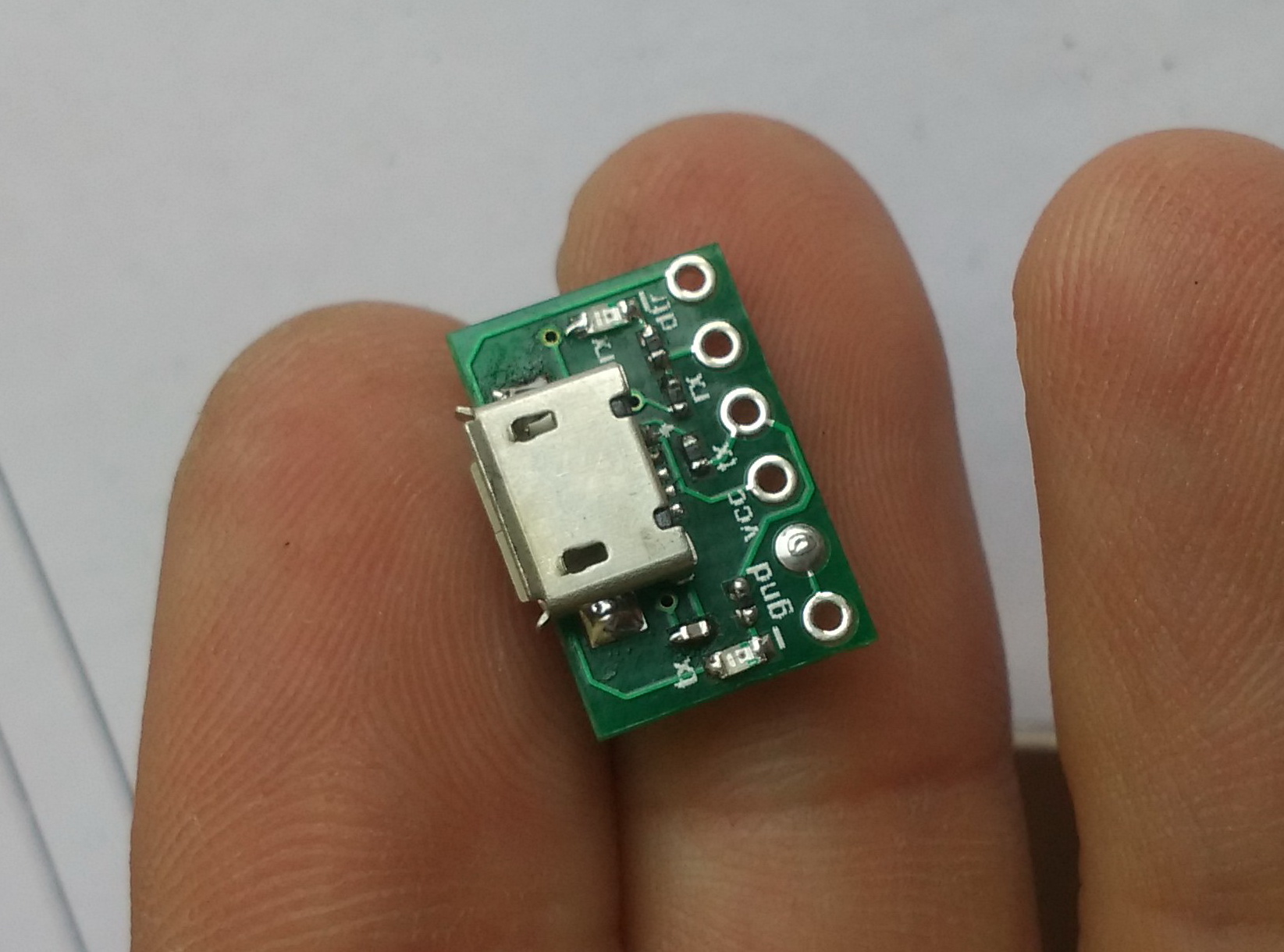

Ultra small size USB-TTL converter for embed into any board with standard UART header (like arduino pro mini). I designed this board special for my new projects with strict requirements of size (10mm height).

Features

  • Very small 10x15mm
  • Inexpensive (use CH340G chip)
  • Standart UART header
  • RX\TX leds

Project status

It works! Under testing now.

PS

I've received parcel with all my pcb's and components and hope to mount and test all of them asap. I plan to show all boards in Breda meetup on july 30 :)
