Donate to support Open HardwareVersion 1.0 as per recent thread. Posted at request of @Larson. Fits base platform: https://www.openhardware.io/view/22651/Version-10-atmega328p-test-platform
WARNING: Although it works, it's not at all polished, and I would do the next version differently. If you want something better polished and more complete, wait for a newer release.
I posted the complete KiCAD 6 archive for this project. It is the .rar file under this project's "Files" tab. That means I'm not a bottleneck. Anyone can open up the project and pick up exactly where I left off if they want to make changes or fork.
Inside the .rar file is a zip file. Don't unzip the .zip file. Rather, in Kicad 6, under the "File..." menu, go to "Unarchive project...." and give it the intact .zip file.

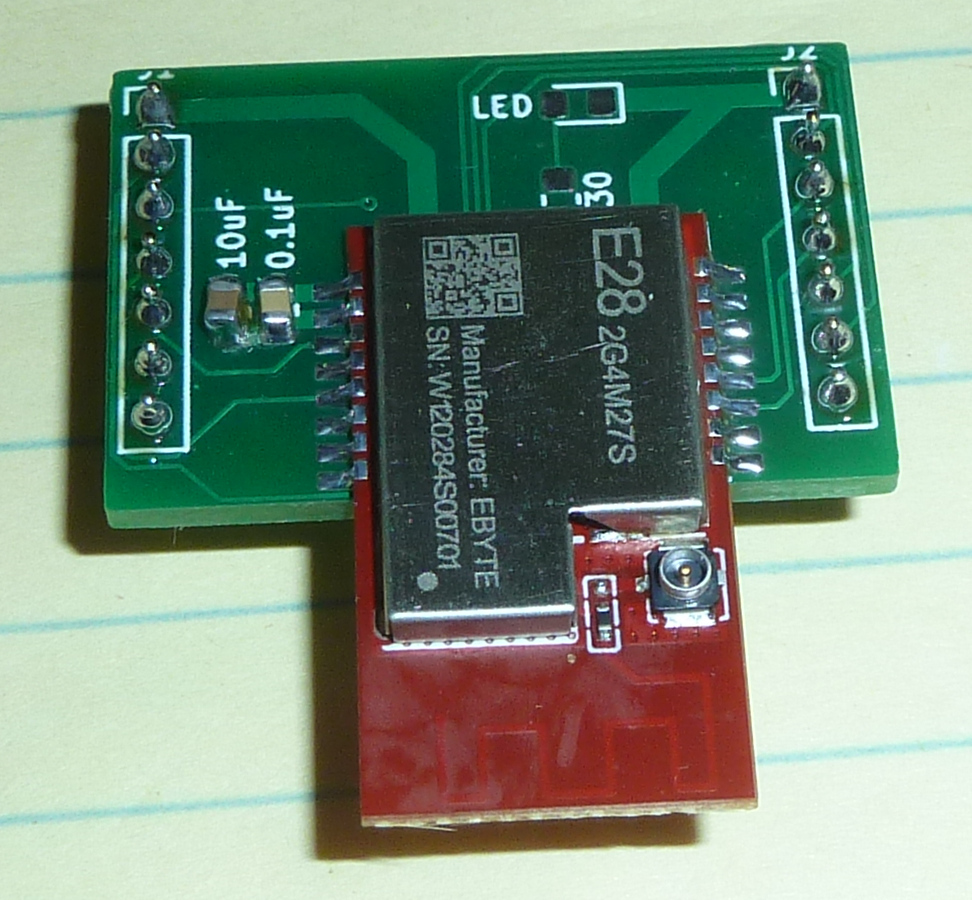

I have tested this module adapter, and it works.
| Name | Size | # Downloads |
|---|---|---|
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-B_Cu.gbr | 32.82 kB | 122 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-B_Mask.gbr | 1000 B | 119 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-B_Paste.gbr | 535 B | 129 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-B_Silkscreen.gbr | 44.66 kB | 113 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-Edge_Cuts.gbr | 765 B | 123 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-F_Cu.gbr | 9.5 kB | 117 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-F_Mask.gbr | 2.61 kB | 123 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-F_Paste.gbr | 2.15 kB | 123 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-F_Silkscreen.gbr | 7.12 kB | 128 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-NPTH.drl | 333 B | 132 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-PTH.drl | 769 B | 147 |
| Ebyte_E28-2G4M27S_2_4GHz_LoRa_v001-job.gbrjob | 2.79 kB | 127 |
| schematic.pdf | 23.44 kB | 106 |
| KiCAD_project_v001.rar | 82.49 kB | 56 |
