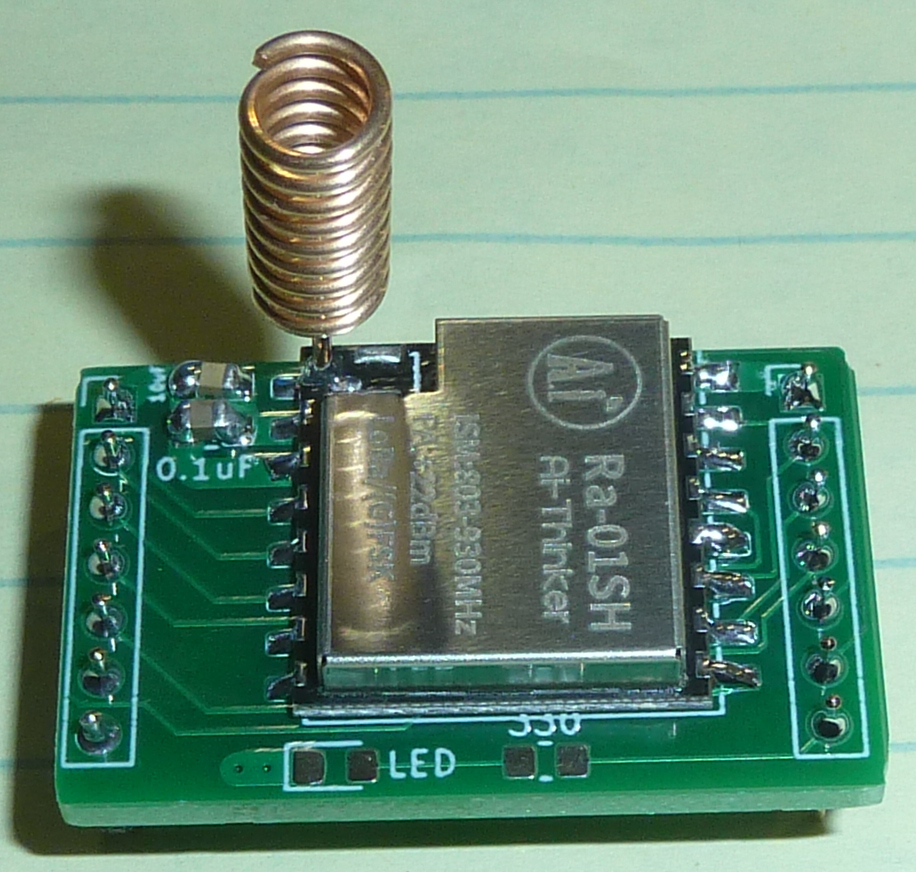

Ra-01SH 900MHz AI-Thinker LoRa adapter board | OpenHardware.io - Enables Open Source Hardware Innovation

Name	Size	# Downloads
Ra-01SH_915MHz_shield_v001-B_Cu.gbr	13.93 kB	163
Ra-01SH_915MHz_shield_v001-B_Mask.gbr	992 B	148
Ra-01SH_915MHz_shield_v001-B_Paste.gbr	527 B	139
Ra-01SH_915MHz_shield_v001-B_Silkscreen.gbr	42.49 kB	129
Ra-01SH_915MHz_shield_v001-Edge_Cuts.gbr	757 B	157
Ra-01SH_915MHz_shield_v001-F_Cu.gbr	8.65 kB	149
Ra-01SH_915MHz_shield_v001-F_Mask.gbr	2.6 kB	155
Ra-01SH_915MHz_shield_v001-F_Paste.gbr	2.15 kB	139
Ra-01SH_915MHz_shield_v001-F_Silkscreen.gbr	7.95 kB	134
Ra-01SH_915MHz_shield_v001-NPTH.drl	333 B	131
Ra-01SH_915MHz_shield_v001-PTH.drl	723 B	165
Ra-01SH_915MHz_shield_v001-job.gbrjob	2.71 kB	145
schematic_v001.pdf	21.36 kB	229
