Damm I am trying to get this working with a Arduino pro mini ,,but no luck wanted to use it in the car ..
How do you wire the NRF24L01+ ???
N-Channel Mosfet s ??? model number please any help much appreciated
I have tried mosfets >>>irf510n
I accidentally purchased the wrong LED Strip. I wanted a smart one, but accidentally ordered a non-addressable RGB strip, the terrible kind where there is a red led then a green led then a blue led repeating.
So what to do... find a cool way to use it :)
So I built a control board and then wrote the code to make it smart(ish), and most importantly controllable locally and remotely via Domoticz.
I've used a few external libraries, and in some cases I had to modify them. Below are the links to the source, and I've attached my edited files to this project:
Example video of some of the functionality:

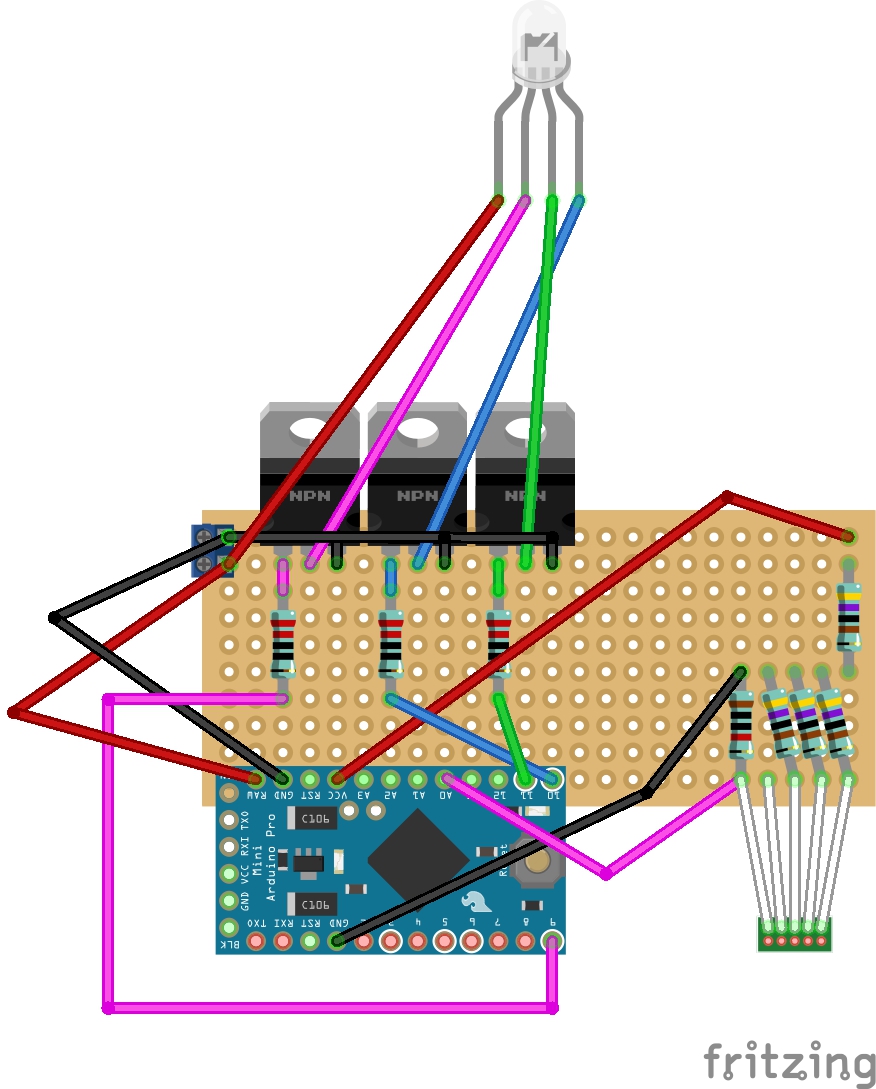

Wiring diagram (to-date)
![enter image description here](https://www.openhardware.io//uploads/581b9fe4239f623655024a06/image/LED Strip b.jpg "enter image title here")
