Adjustable Boost Converter with Pass-Through
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
8 years ago
Updated:
8 years ago
Views:
6814
4 Collect
31 Comments
Share
33 Download (411.51 kB)
Donate to support Open Hardware

Output voltage of boost converter is adjustable and can be set from 2.0v to 5.5v, as per datasheet: http://ww1.microchip.com/downloads/en/DeviceDoc/22234B.pdf

Minimum operating voltage is 0.35v, and minimum start-up voltage is 0.65v.

The MCP1640C part can be found on DigiKey.

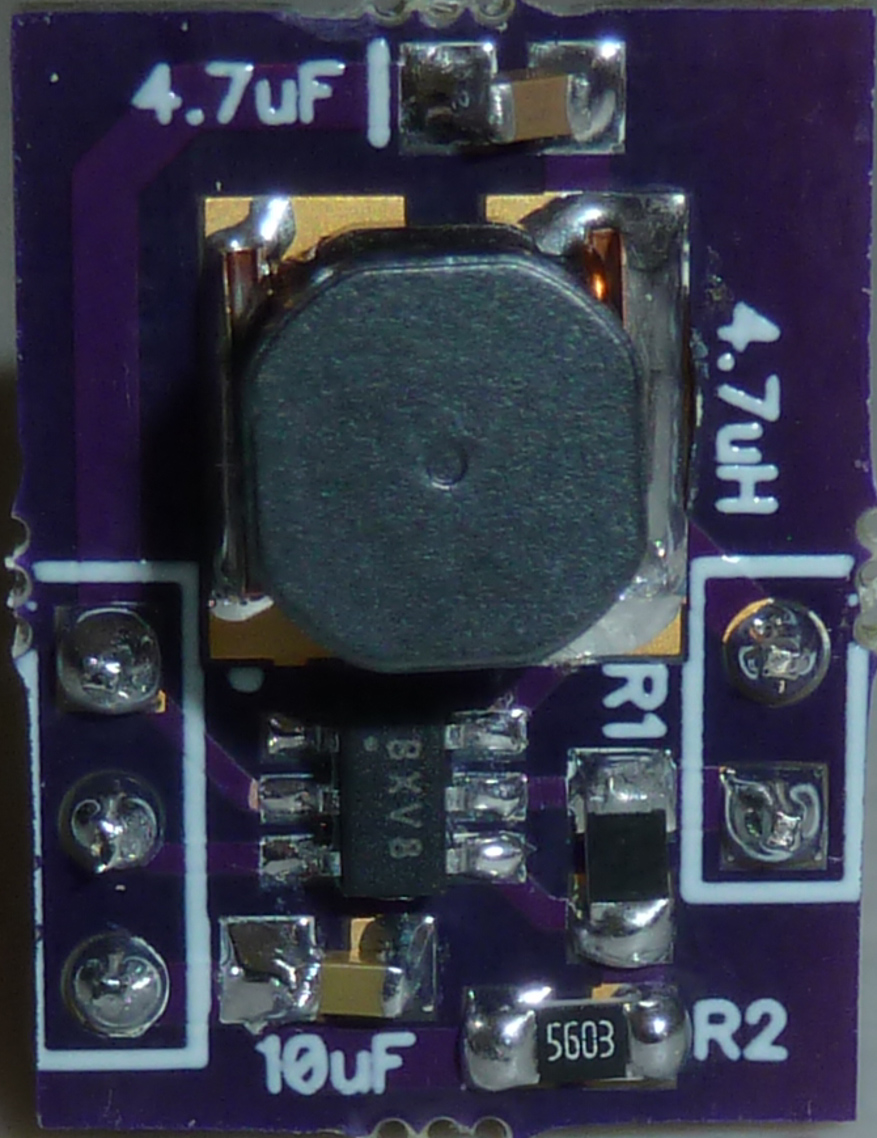

This board is designed to plug easily into a 2.54mm pitch breadboard. Use 2.54mm pitch header pins.
