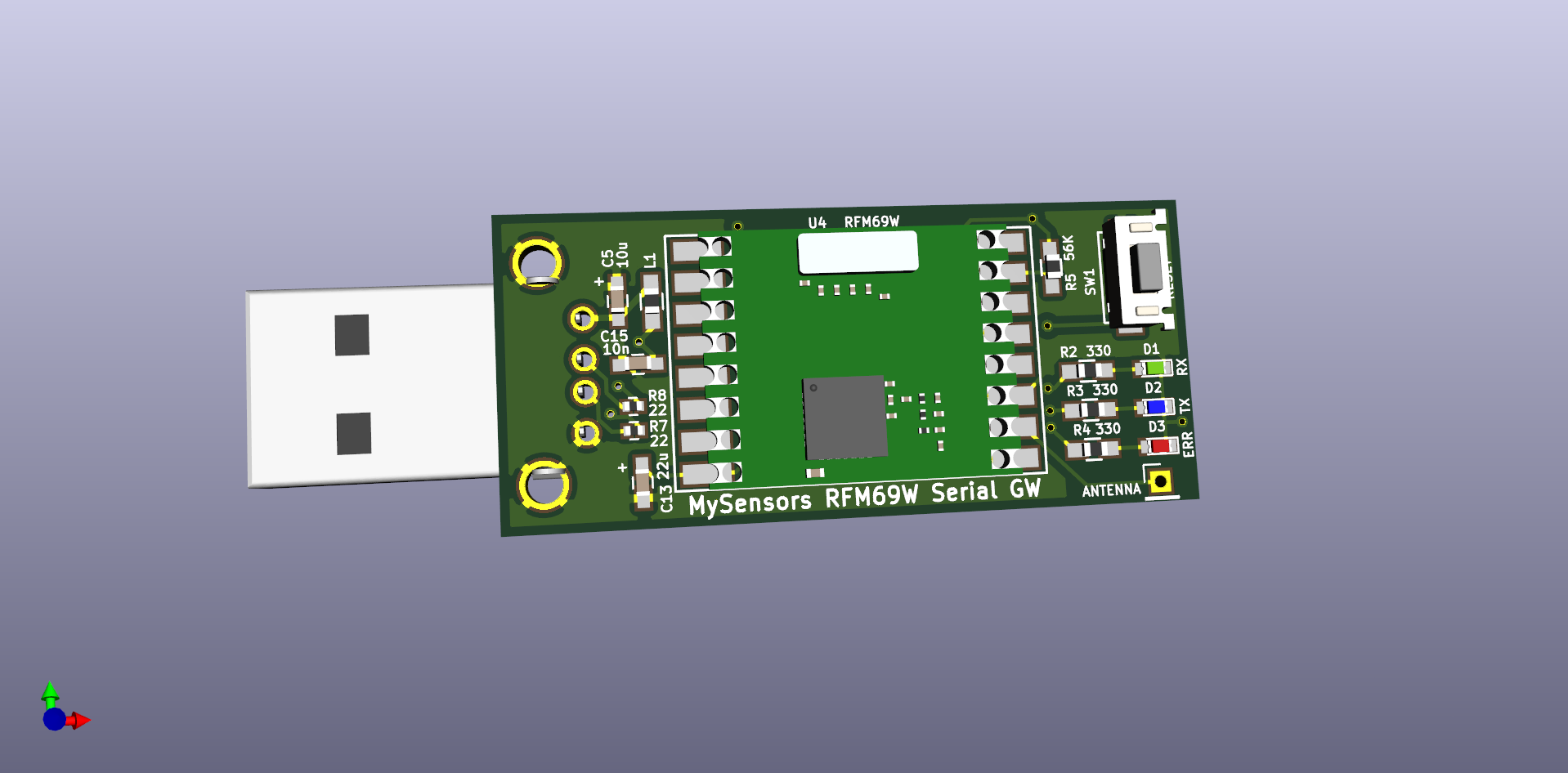

The majority of the components are 0603 SMD package type (except 2 smd resistors on the usb lines which are not really mandatory and can be replaced with a solder bridge).
There you go (extracted from schematic - I can't do better than this because it involves more work and I don't have time for it, sorry):
a) 9 x 100nF 0603 SMD MLCC capacitors, X5R/X7R (voltage can be 10V and above)
b) 3 x 1uF 0603 SMD MLCC capacitors, X5R/X7R (voltage can be 10V and above)
c) 1 x 10uF 0603 SMD MLCC capacitor, X5R/X7R (voltage can be 10V and above)
d) 1 x 22uF 0603 SMD MLCC capacitor, X5R/X7R (voltage can be 10V and above)
e) 1 x 10nF 0603 SMD MLCC capacitor, X5R/X7R (voltage can be 10V and above)
f) 1 x ferrite bead 0603 SMD blm18he152sn1d
g) 3 x 330 ohm 0603 SMD resistor
h) 1 x 1Kohm 0603 SMD resistor
i) 1 x 10Kohm 0603 SMD resistor
j) 1 x 56Kohm 0603 SMD resistor
k) 1 x MCP1703A-3302 3.3V/0.25A voltage regulator
l) 1 x TXB0104 voltage level converter
m) 1 x ATMEGA328P-MU AVR MCU (QFN32 package)
n) 1 x CP2102 USB to serial (QFN28 package)
o) 3 x 0603 SMD LEDs (your pick here)
p) 1 x ATSHA204A (SOT-23 package)
q) 1 x RFM69W module (your pick regarding working frequency)
r) 1 x ZTTCS16.00MX ceramic resonator
s) 1 x USB A type male connector for PCB and 1 SMD reset switch (I have no exact links for this, sorry)
