Hi,
I finally received the boards from the manufacturer(big thanks to @Seeed-Fusion). I manage to assemble one board by soldering the components and such and...it WORKS(including OTA)! I will post the instructions on openhardware.io project page.
RFM69 Relay Actuator Node (mains powered)
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
8 years ago
Updated:
7 years ago
Views:
5454
11 Like
7 Collect
9 Comments
90 Download (5.96 MB)
Make a donation to mtiutiuMysensors RFM69W heater relay module
Description:

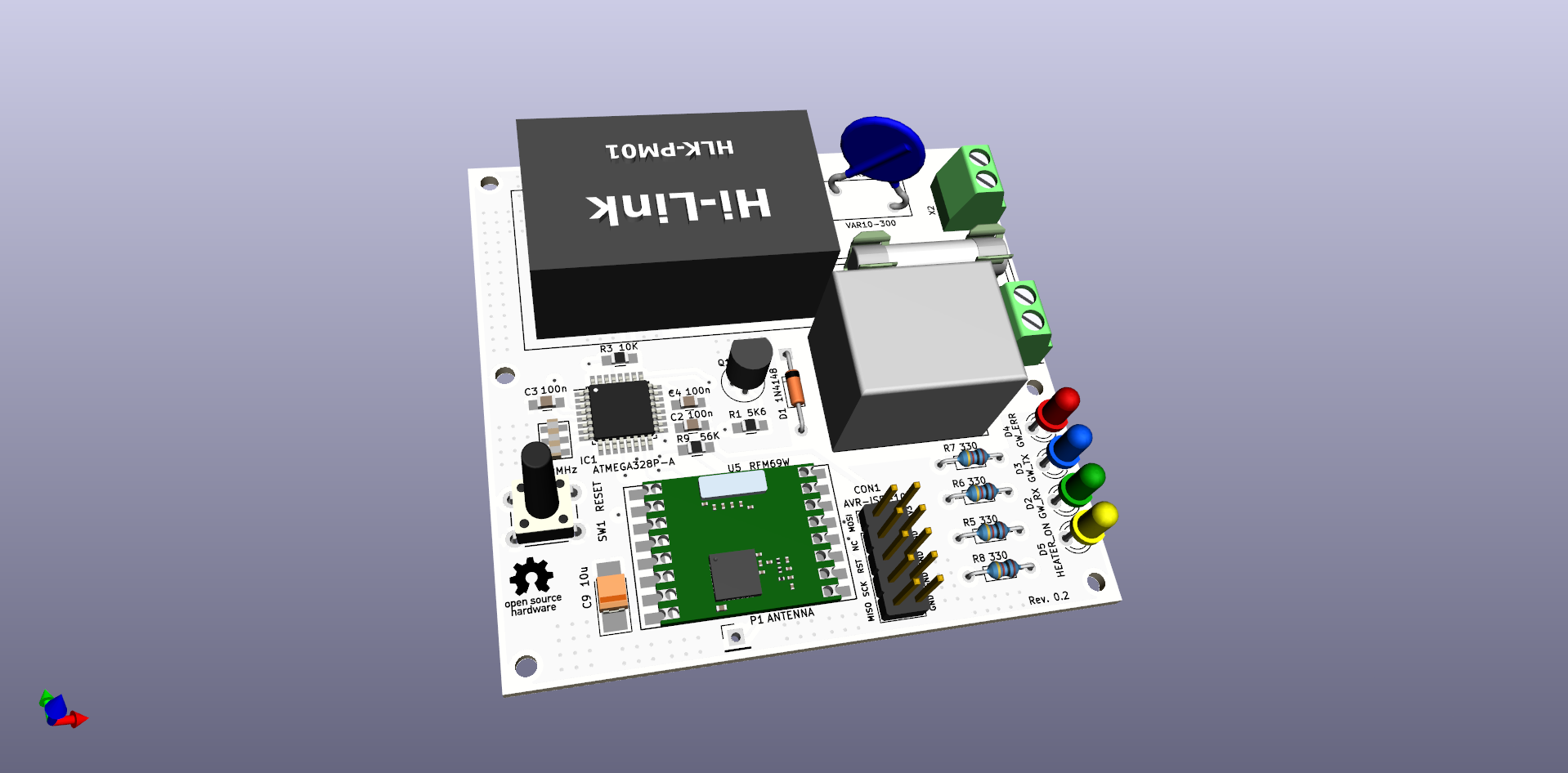

This is a Mysensors RFM69W actuator node for controlling a heater or other appliances using a relay
Key Features:
- AT25DF512C-SSHN-B SPI flash module for OTA
- ATSHA204A for signing
- MySensors ready(Atmega328p + RFM69W)
- HLK-PM01 as power supply
Work progress:
- Test/verify the pcb board correctness(from both electrical and mechanical point of views) - DONE
- Produce the initial PCB's using some external PCB manufacturer - DONE
- Components assembly(soldering) - DONE
- Create 3D printed plastic enclosure - DONE
- Create MySensors sketch code - DONE
- Verify the real board with running code - DONE
- Verify OTA - DONE
Instructions:
- Burn MCU fuses using avrdude like this:
avrdude -cusbasp -pm328p -U lfuse:w:0xff:m -U hfuse:w:0xda:m(for external 8MHz crystal oscillator and bootloader) - Burn DualOptiboot bootloader
- Upload the provided sketch with this project or roll your own(pay attention to set this preprocessor define:
#define MY_OTA_FIRMWARE_FEATURE)
HW Revisions:
- 0.1 - initial hw design
- 0.2 - removed capacitor from reset switch as it can interfere with arduino serial bootloader if used
Credits:
All credits go to MySensors team for the great work and to the opensource community
