MySensors-D1-mini

MySensors D1 mini is derivative of Sensebender Micro designed by Thomas Mørch (thomas@mysensors.org). Main goal of this project is to use all Wemos D1 mini (pro) shields with MySensors node.

Update 2017-04-21: added DHT22 sketch and picture.

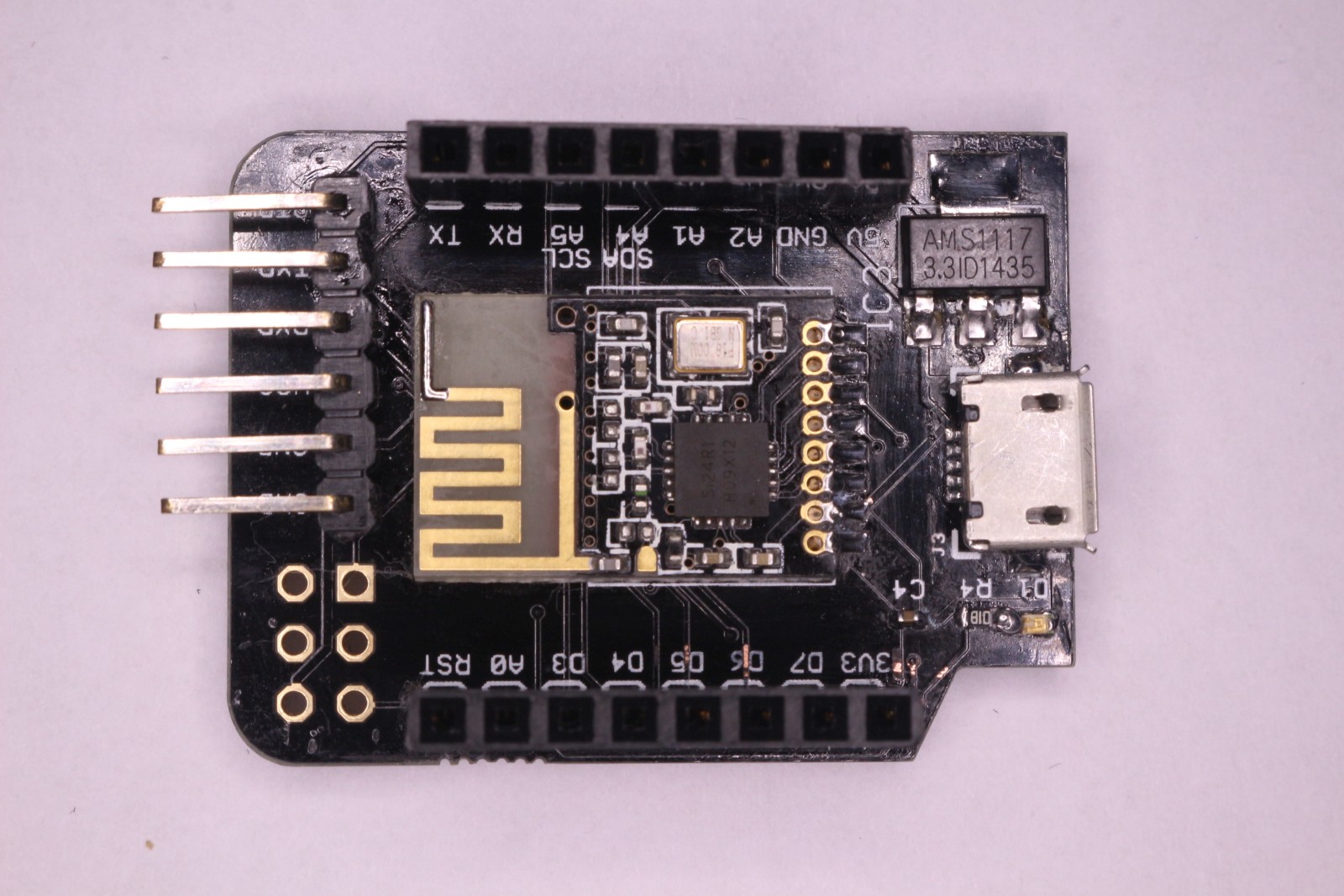

Update 2017-04-19: uploaded pics of first prototype and source code of relay node.

You can order PCB from following two sources:

PCBs.io 4 for $6, black 1.6mm PCB

OSHPark.com 3 for $7.60, purple 1.6mm PCB

Qty	Value	Device	Package	Parts	Description	MF	MPN	Aliexpress or Ebay link
5	100n	CAP-0402	C0402	C1, C2, C4, C5,C6		SAMSUNG	CL05B104KO5NNND	https://www.tme.eu/en/details/cl05b104ko5nnnd/mlcc-smd-capac...
1	4u7	CAP-0603	C0603	C3		YAGEO	CC0603KRX5R6BB475	https://www.tme.eu/en/details/cc0603krx5r6475/mlcc-smd-capac...
2	10u	CAP-1206	C1206	C7, C8
1	330R	R-0402	R0402	R4		VISHAY	CRCW0402330RFKTDBC	https://www.tme.eu/en/details/crcw0402330rfktdbc/smd-resisto...
1	10k	R-0402	R0402	R3		YAGEO	RC0402FR-0710KL	https://www.tme.eu/en/details/rc0402fr-0710k/smd-resistors/y...
2	56k	R-0402	R0402	R5, R6		VISHAY	CRCW040256K0FKTDBC	https://www.tme.eu/en/details/crcw040256k0fktdbc/smd-resisto...
1	LED	LED-0402	LED-0402	D1		VISHAY	VLMS1500-GS08	https://www.tme.eu/en/details/vlms1500-gs08/smd-colour-leds/...
1	AMS1117 3.3V	REG1117	SOT-223	IC3		Advanced Monolithic Systems	AMS1117-3.3	Ebay: https://www.ebay.com/sch/i.html?_from=R40&_sacat=0&_nk...
1	ATMEGA 328P-AU	MEGA328P-AU	TQFP32	IC1		Atmel	ATmega328-AU	Ebay: https://www.ebay.com/sch/i.html?_from=R40&_sacat=0&_nk...
0	AT25DF512C-SSHN-B	AT25DF512C-SSHN-B	SO-08	IC2	Not mounted	ADESTO	AT25DF512C-SSHN-B	https://www.tme.eu/en/details/at25df512c-sshnb/serial-flash-...
0	ATSHA204A	ATSHA204A	SOT-23	IC4	Not mounted	Atmel	ATSHA204A-STUCZ-T	https://www.tme.eu/en/details/atsha204a-stucz-t/authentifica...
0	32768hz	CRYSTAL-306010055	2P-L3.2XW1.5MM	Q1	Not mounted
1	USB B Micro connector	USB B Micro	USB-B-MICRO-SMD	J3				Ebay: https://www.ebay.com/sch/i.html?_from=R40&_sacat=0&_nk...
1	Wireless NRF24L01 SMD	NRF24L01 SMD	WIRELESS-NRF24L01SMD	M1				Ebay: https://www.ebay.com/sch/i.html?_from=R40&_sacat=0&_nk...
2	Header 8pin	PINHD-1X8	1x08	J1, J2
1	Header 6pin	PINHD-1X6	1x06	JP2
0	Header 2x3 ICSP	AVR-ISP-6VERT	2x03	JP3	Not mounted

Name	Size	# Downloads
MySensor D1 mini.pdf	14.08 kB	392
MySensors D1 mini.brd	111.31 kB	719
MySensors D1 mini.sch	273.48 kB	693
CHANGES.txt	230 B	414
COPYRIGHT.txt	419 B	426
LICENSE.txt	8.94 kB	404
PRODUCT.txt	108 B	454
MySensors D1 mini.GBL	15.65 kB	710
MySensors D1 mini.GBO	18.77 kB	633
MySensors D1 mini.GBS	7.87 kB	638
MySensors D1 mini.GKO	4.67 kB	630
MySensors D1 mini.GTL	7.66 kB	659
MySensors D1 mini.GTO	19.67 kB	666
MySensors D1 mini.GTS	2.31 kB	648
MySensors D1 mini.XLN	896 B	596

Name	Size	# Downloads
MySensors_D1_mini_Blink.ino	536 B	628
MySensors_D1_mini_relay.ino	3.37 kB	651
MySensors_D1_mini_DHT22.ino	4.85 kB	652

Paul Robertson commented 8 years ago
Lovely work. Are you proposing to sell the boards? SMD looks too hard.
stanoba commented 8 years ago
@mr_red Hi, I have no problem with reception, but in my case, distance between GW and node is just 5m and one 15cm wall. You can extend node range by soldering short wire to wireles module antena https://www.youtube.com/watch?v=NpMnauHeR7Y, it can realy help.
mr_red commented 8 years ago
Did you have any concerns about the reception? My first test with components on the other side of the nrf-smd module where not that good.
Yours works as did mine but how is the "reception"? Do you get a lot of failed acks?
