Raspberry Pi gateway interface
License:
Public Domain
Created:
8 years ago
Updated:
8 years ago
Views:
4914
6 Collect
5 Comments
Share
62 Download (1.49 MB)
Donate to support Open Hardware

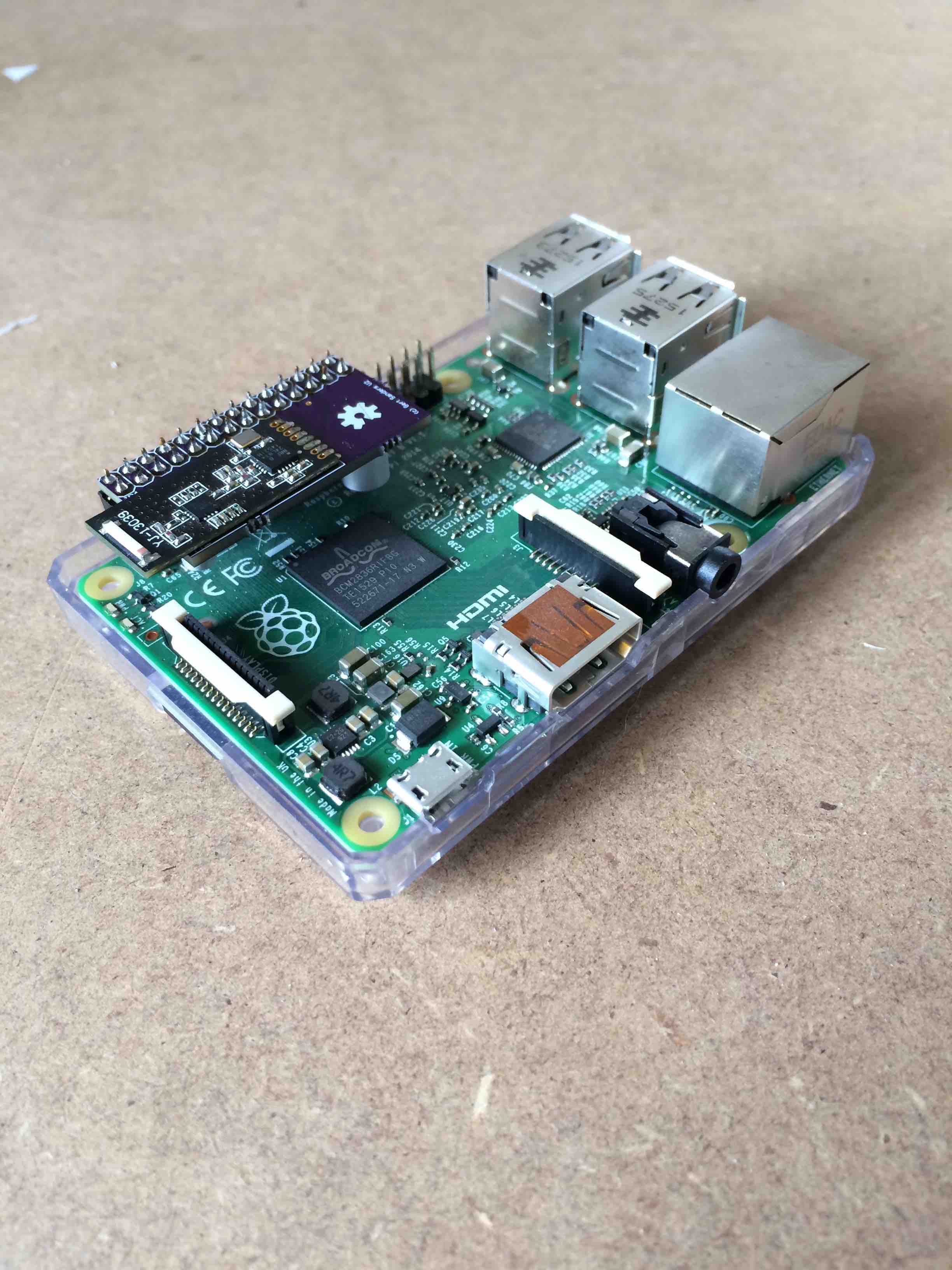

This board is tested and now used in my Domoticz setups. I use Raspberry Pi 2 as controller and gateway. The board is available at OSHPark: Order from OSH Park and wil cost you $5.25 for three boards.

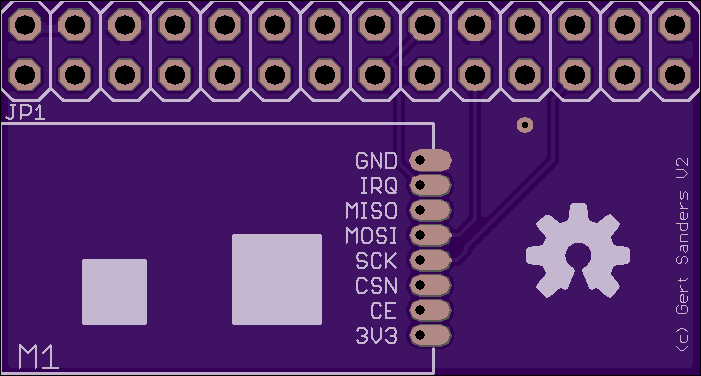

The top side:

enter image description here

The bottom side:

enter image description here

The IRQ pin of the NRF24L01+ module is connected to PIN18 on the Raspberry header.
