Minimalist RFM69(H)W Shield for Wemos D1 Mini
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
8 years ago
Updated:
3 years ago
Views:
6383
6 Collect
6 Comments
Share
103 Download (461.75 kB)
Donate to support Open Hardware

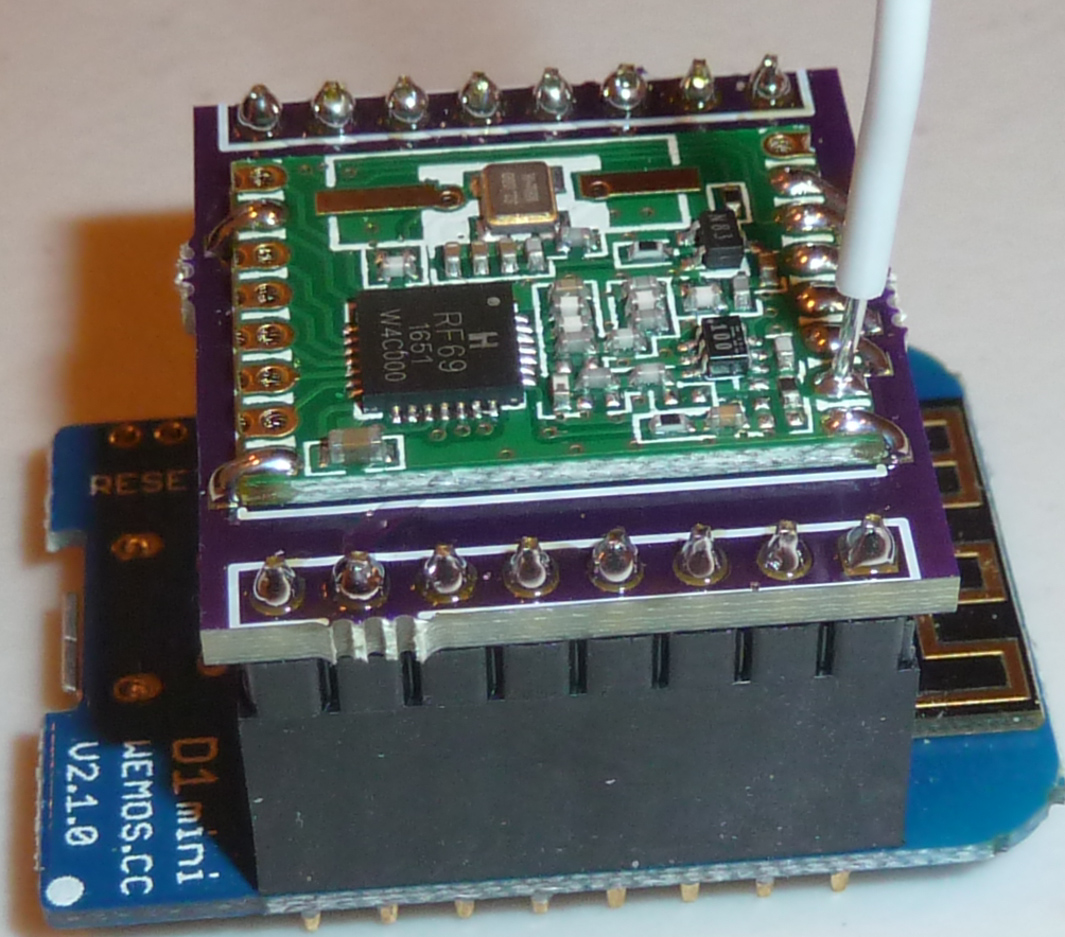

Minimalist implementation of a Wemos D1 Mini shield for either a RFM69HW or a RFM69W module (both have the same pinout). Final build uses just the PCB, the RFM69HW module or the RFM69W module, two 8-pin headers, and a length of wire to serve as the antenna. This minimalist design both simplifies assembly and keeps the PCB cost low.
