MdMs

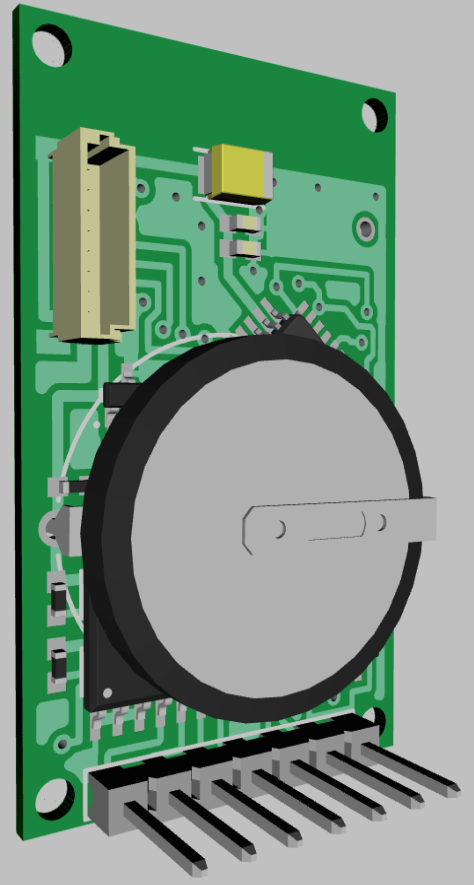

MySensors 6 Button Node

Focus on the use with the library MySensor

License: CERN Open Hardware License

#Technical Specification

  • Small footprint, 24 mm x 36 mm
  • Arduino IDE 1.6.x compatible.
  • 64kb SPI flash / e2prom onboard. Useful for over-the-air firmware updates. Also possible to use memory for a local sensor data cache.
  • ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support
  • On board battery holder CR2032
  • SMD radio module NRF24/RFM69
  • Small program connector
  • Status LED
  • Inclusion button
  • Factory programmed with DualOptiBoot bootloader.

#Available pins

  • 6 buttons
  • Programming connector
