Hi everyone!

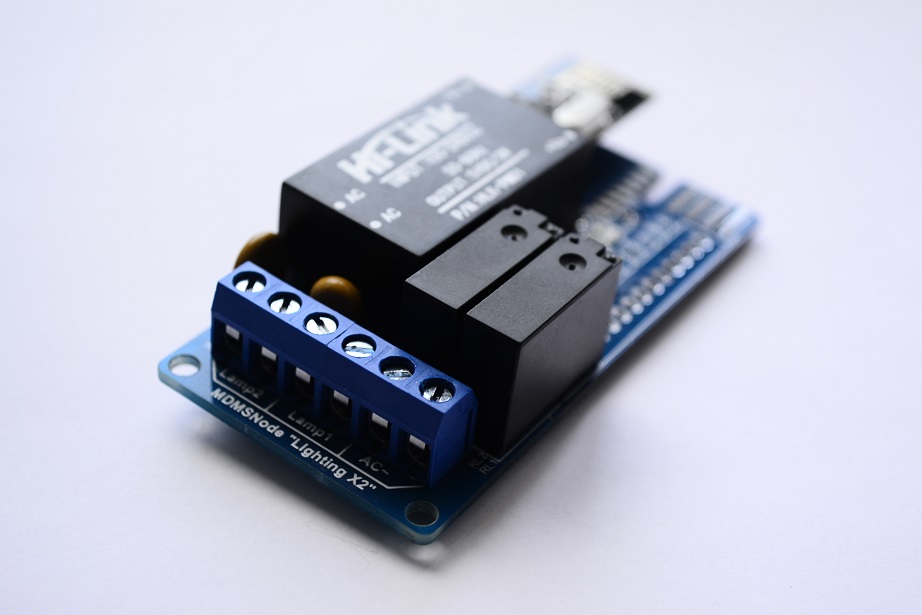

I want to present the next generation my lighting devices with two channels which called "Ligthigs X2". This device was designed for one of the users of MySensors technology - bilbolodz (for controlling the lighting of the garden).

Features:

  • Atmega328p;
  • NRF24L01 or RFM69 radio network;
  • ATSHA204A;
  • M25P40 SPI flash;
  • two independent relay channels (HF46F);
  • debug switch and led;
  • 1Wire temp sensor;
  • screw terminal for external connections (I2C, 1Wire, GPIO, INT, ADC, PWM etc.);
  • good trasing power lines for radios;
  • MDMS programming connector.
