Small nRF24L01+ Shield for ESP8266 Wemos D1 Mini
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
5 years ago
Views:
10221
3 Collect
11 Comments
Share
168 Download (789.83 kB)
Donate to support Open Hardware

Uses the MyDensors recommended pin connections for connecting an nRF24L01+ to an ESP8266: https://www.mysensors.org/build/connect_radio

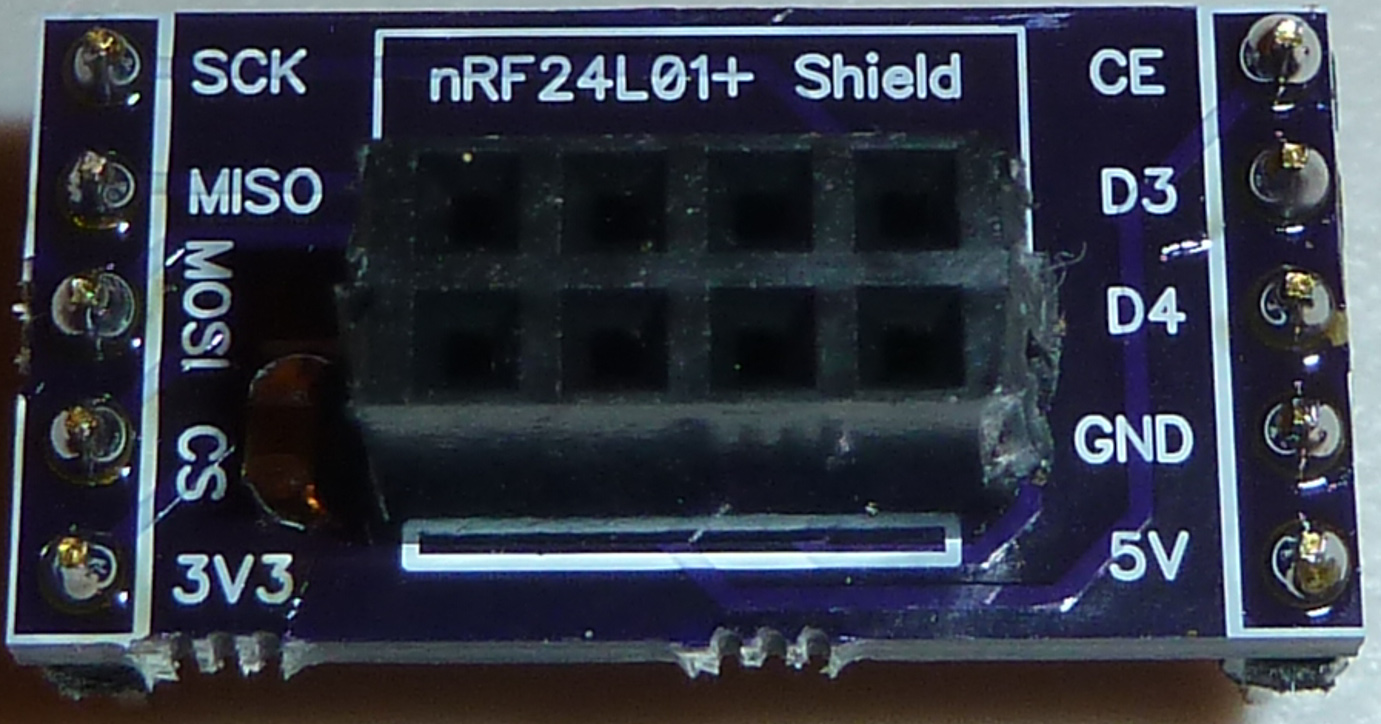

Minimalist implementation is very easy to assemble. Includes pads for an optional surface mounted capacitor. Board is just 1/2" x 1" in size.
