Ebyte nRF52832 Prototyping Board
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
5 years ago
Views:
4312
1 Collect
6 Comments
Share
45 Download (429.03 kB)
Donate to support Open Hardware

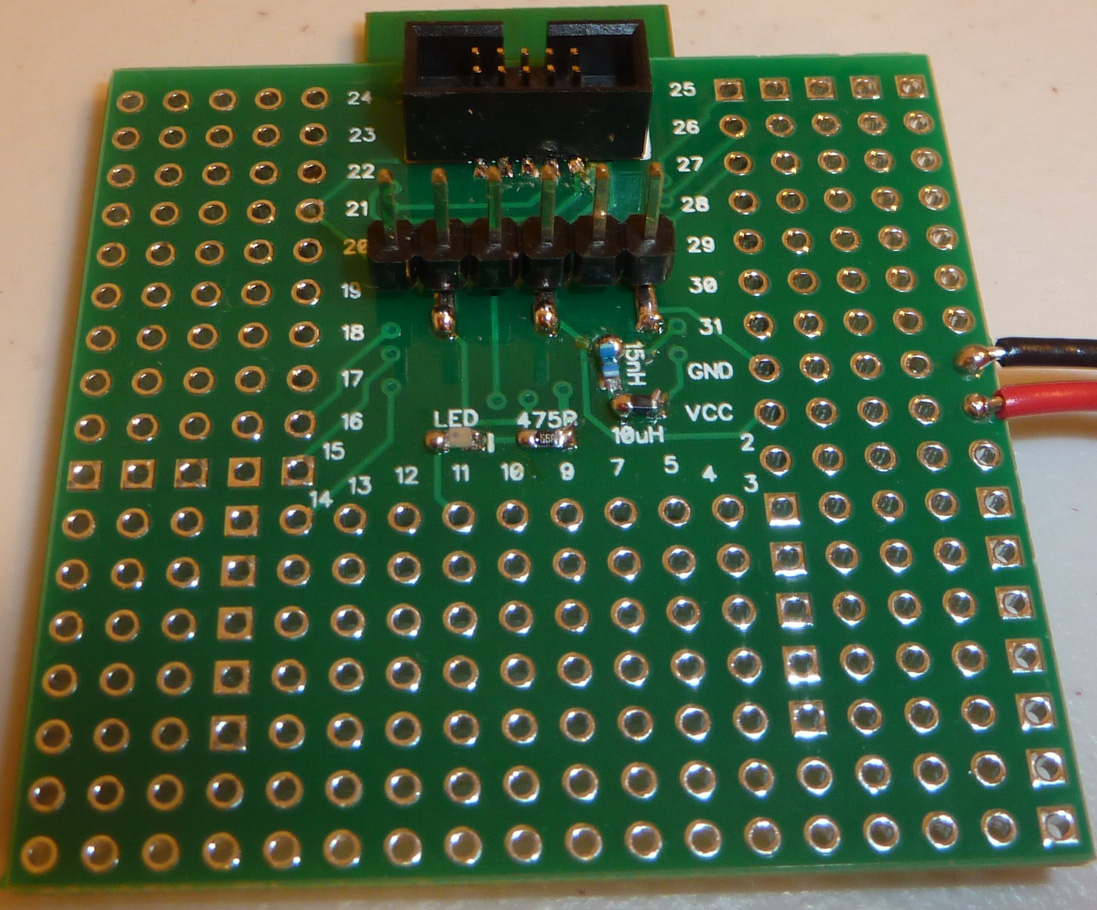

Tired of soldering each breakout board to a prototyping board? I know I am. Hence, this time saving PCB integrates the two into a single board. This greatly reduces the total amount of grunt soldering required to build a project.

I would have made the unified PCB even larger, with many more pads to support making whatever is needed on a single board, but I'm up against the 300 pin limit allowed by the PCB design software.

This project directly leverages an earlier project, where you can find more details: https://www.openhardware.io/view/471/Ebyte-nRF52832-Small-Breakout-Board
