IDC 10-pin ARM debug adapter
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
5 years ago
Views:
4561
2 Collect
2 Comments
Share
23 Download (816.65 kB)
Donate to support Open Hardware

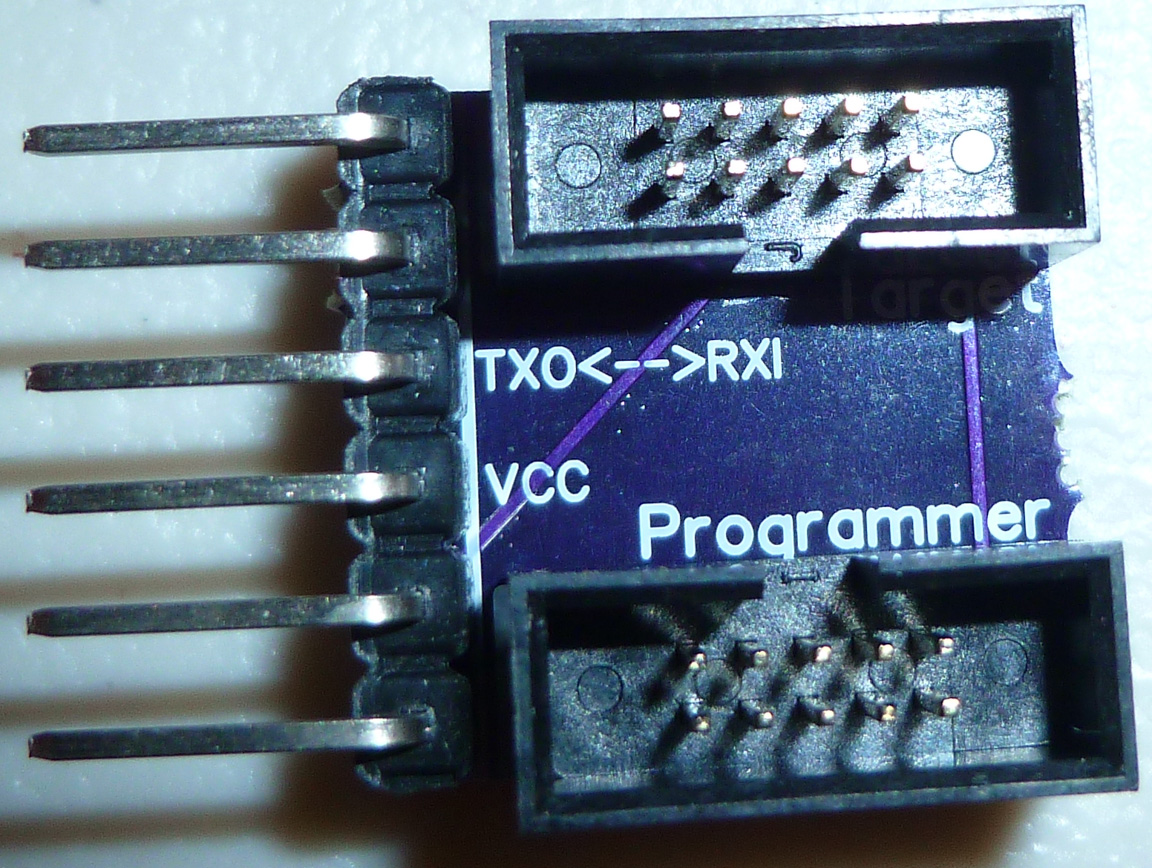

To aid with debugging, I'm channeling serial output from the target nRF5 out over one of the unused pins of the IDC 10-pin programming header. My two most recent nRF5 breakout boards are wired to do this. This little adapter allows for output Serial to be read using a regular FTDI serial adapter. I decided this is preferable to putting a 6 pin FTDI header on the target module itself, which is what I did earlier with the Ebyte nRF52832 breakout board.
