Arduino Nano radio shield. RFM 69 CW(HCW), LoRa RF 95/96 or NRF24L01+ radio on-board.

Features

  • PCB Dimensions 40x25mm
  • Fully compartible with standard inexpensive Arduino Nano boards.
  • All arduino pins are avaliable for Dupont wires.
  • RFM69HW, RF 95/96 and NRF24l01 footprints
  • SMA socket for external sub-GHz antenna for RFM 69 radio transceiver
  • 5v to 3.3v level convertor onboard (for radio and flash)
  • Secure authentication - Atmel ATSHA204A Crypto Authentication Chip
  • External JDEC EPROM for OTA\FOTA
  • SD card reader onboard

CS and other Pins connected to Arduino Nano:

Arduino Pins Description
A0 Connected to SD card reader CS
A3 Connected to ATSHA204A - Crypto Authentication chip
D8 Connected to CS FLASH chip (OTA)
D9 Connected to RFM 69 Reset pin
D2 RFM DIO0 interrupt
D11, D12, D13 SPI interface
A1, A2, A4, A5, D3, D4, D5, D6, D7 Free available pins

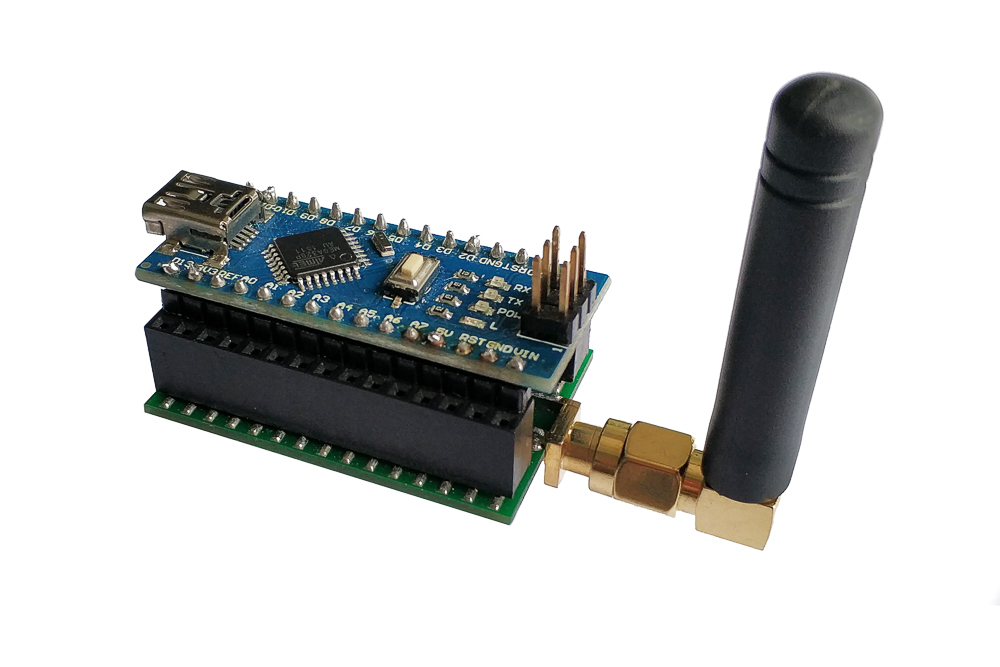

Arduino Nano RFM sheild

*** The Arduino Nano is not included

Arduino Nano RFM sheild Arduino Nano RFM sheild Arduino Nano RFM sheild Arduino Nano RFM sheild Arduino Nano RFM sheild

Package Content:

  • The radio shield board 1 pcs

*** SMA antenna comes only with RFM 69, RF 95/96 radio transceiver
