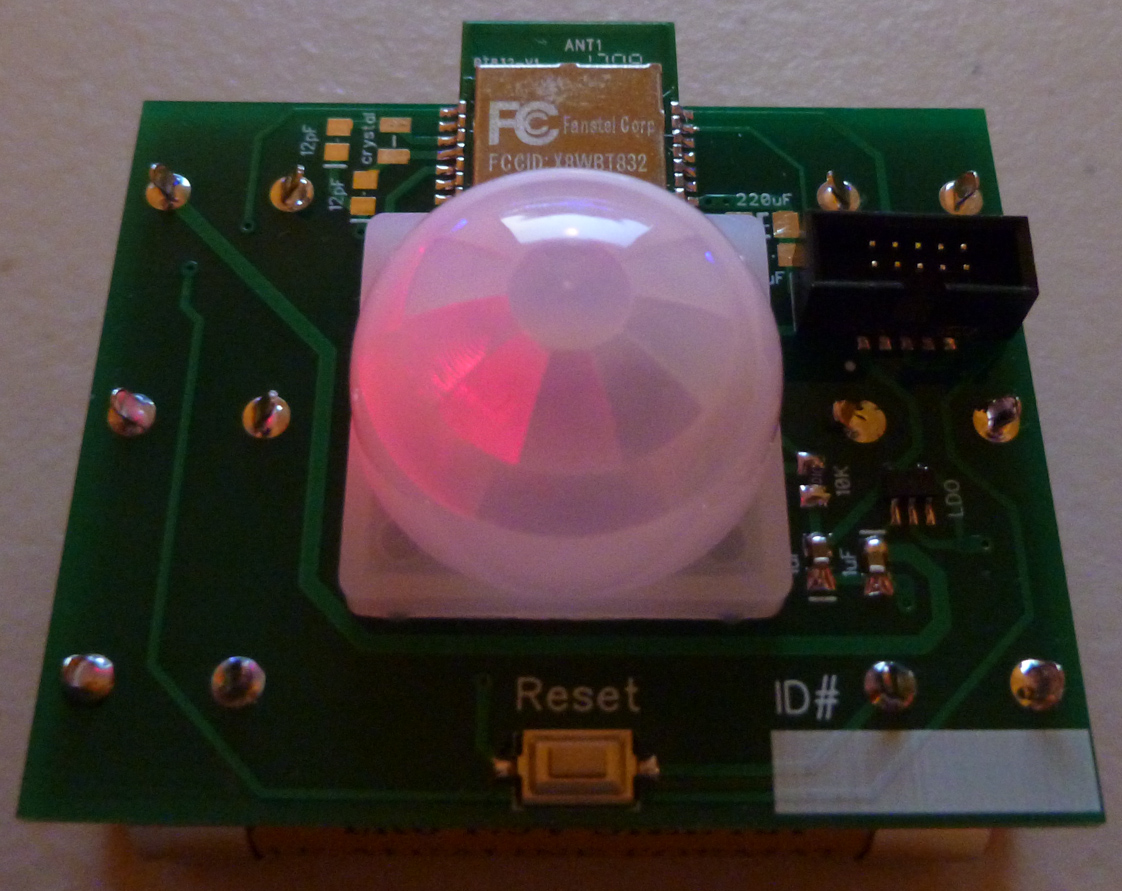

This PIR sensor is powered by three AA batteries, which should easily power this sensor node for more than 10 years.
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 6 | AA Battery Holder Clip | Memory Protection Devices | BK-92 | https://www.digikey.com/scripts/DkSearch/dksus.dll?Detail&it... | ||||
| 1 | nRF52832 module | Fanstel | BT832 | https://www.fanstel.com/buy/bt832-ble42-hardware-ready-for-b... | ||||
| 1 | integrated PIR sensor | AM612 | ||||||
| 1 | IR Lens | |||||||
| 1 | 3*6*2.5MM Tactile Push Button | AliExpress: 50PCS SMD 3*6*2.5 MM Tactile Tact Push Button Mi... | ||||||
| 1 | crystal | Crystal 32.7680KHz 9PF SMD | Abracon | ABS07-32.768KHZ-9-T | https://www.digikey.com/scripts/DkSearch/dksus.dll?Detail&it... | |||
| 2 | capacitor | 0805 | 12pF SMD capacitor | Samsung | CL21C120JBANNNC | https://www.digikey.com/scripts/DkSearch/dksus.dll?Detail&it... | ||
| 1 | LDO | SOT-23-5 | 3.0v LDO | ON Semiconductor | NCP4589DSN30T1G | https://www.mouser.com/Search/ProductDetail.aspx?R=NCP4589DS... |
| Name | Size | # Downloads |
|---|---|---|
| Schematic for nRF52832 AM612 PIR Sensor v607.pdf | 23.5 kB | 862 |
| BoardOutline.gbr | 288 B | 630 |
| Bottom.gbr | 69.32 kB | 658 |
| BottomAssy.gbr | 189 B | 559 |
| BottomDimension.gbr | 199 B | 602 |
| BottomMask.gbr | 619 B | 607 |
| BottomPaste.gbr | 189 B | 586 |
| BottomSilk.gbr | 2.95 kB | 640 |
| Through.drl | 757 B | 595 |
| Top.gbr | 5.93 kB | 618 |
| TopAssy.gbr | 186 B | 563 |
| TopDimension.gbr | 196 B | 518 |
| TopMask.gbr | 1.82 kB | 619 |
| TopPaste.gbr | 1.4 kB | 597 |
| TopSilk.gbr | 17.29 kB | 633 |
| Name | Size | # Downloads |
|---|---|---|
| MyBoardNRF5.cpp | 6.04 kB | 694 |
| MyBoardNRF5.h | 5.03 kB | 687 |
| PIR_AM612_v607_v009.ino | 7.86 kB | 2296 |
-
NeverDie commented 5 years ago -
berkseo commented 6 years ago@neverdie
Hi, it is not clear from the message, if a movement occurs, will the battery data transmission interval be saved? -
NeverDie commented 8 years ago
Project completed. I've just now uploaded the files for version 607. I've tested this board, and it works.
-
NeverDie commented 8 years ago
Because this is a compact design, the battery clips may touch. So, to prevent any short-circuiting, you may wish to use a bit of Kapton tape, or similar insulating tape (maybe even electrical tape) on the outside of the inside clips to prevent contact with the outer clips):
-
NeverDie commented 8 years ago
I've just now uploaded a demo sketch whereby the PIR reports its voltage as a heartbeat once every 5 minutes. However, if motion is detected, it's immediately reported wirelessly.
-
NeverDie commented 8 years ago
I just now uploaded version 604, which uses an LDO better suited to meet the current requirements of the BT832X, in case that is installed. I have shipped the files to the fab, so I'll post an update after I've received and tested the board.
I expect that upgrading to use the nRF52840, when it becomes available, will be a simple drop-in replacement upgrade.
-
NeverDie commented 8 years ago
I just now uploaded version 603, which includes a 32.678KHz crystal oscillator.
-
