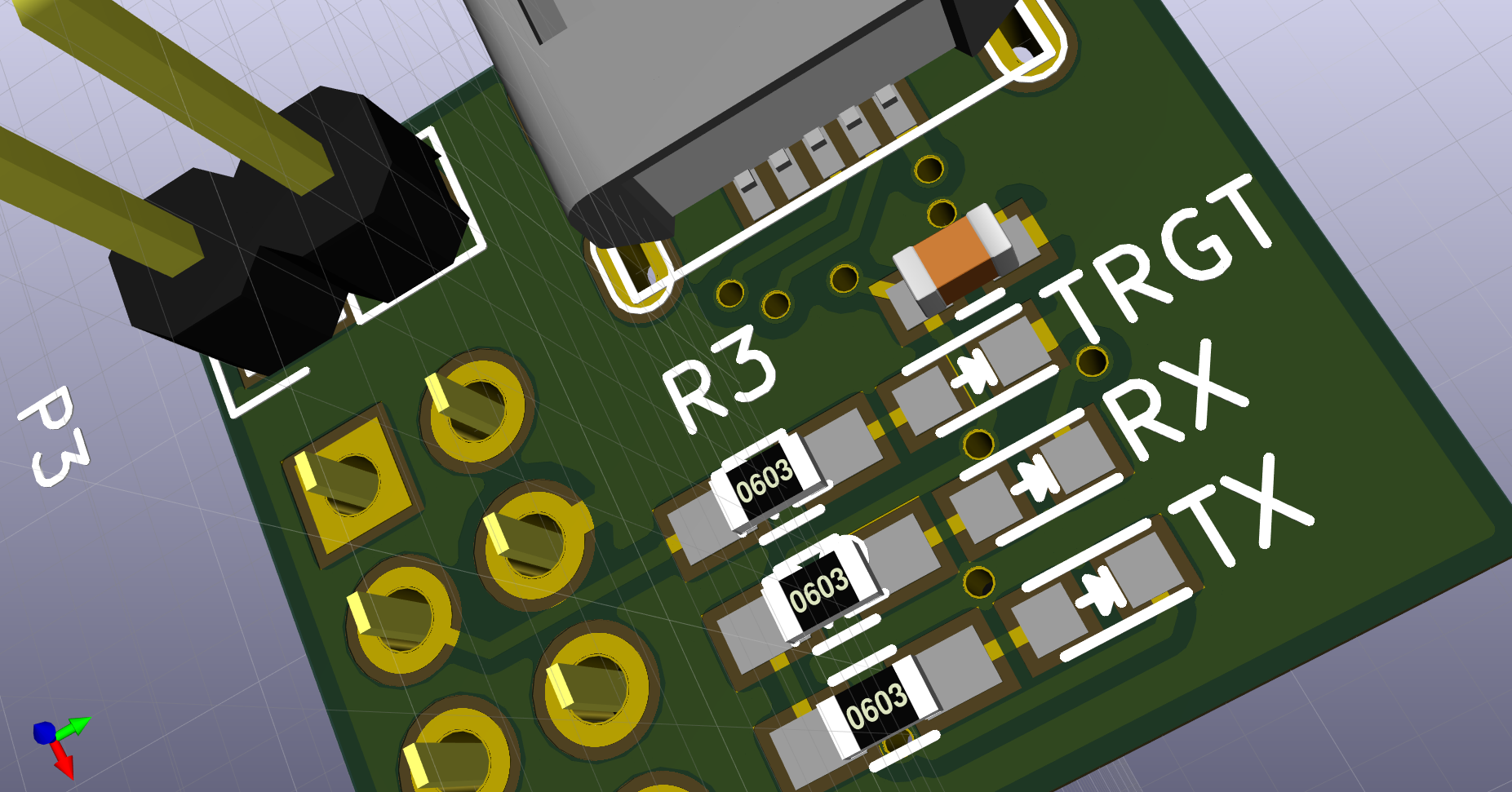

MysX2USB

Contains a USB MysX interface, usefull for debugging, and programming Mysensor nodes with MysX header.

Target can be supplied with power from vUSB, if jumper P2 is in place

NOTE! Using MysX 2.0 with reset pin! can be used together with MysX 1.x if you handle reset yourself
