Yo! This project is still a Work In Progress. Instructions, board layouts and BOM might change!
RFM69 Sensors / Gateway
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
7 years ago
Views:
4301
3 Collect
2 Comments
Share
79 Download (1015.05 kB)
Make a donation to Ranseyer

Gateway

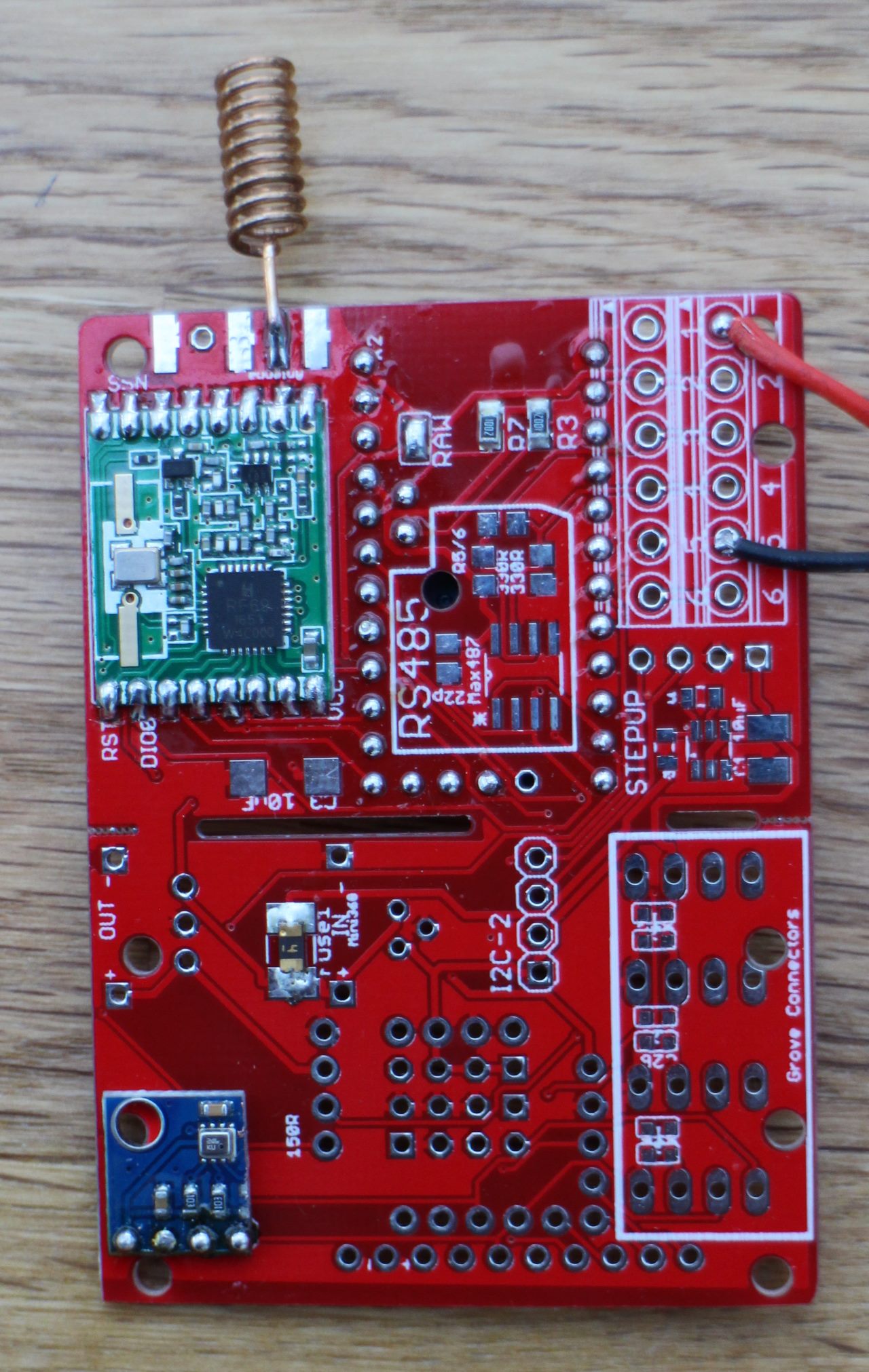

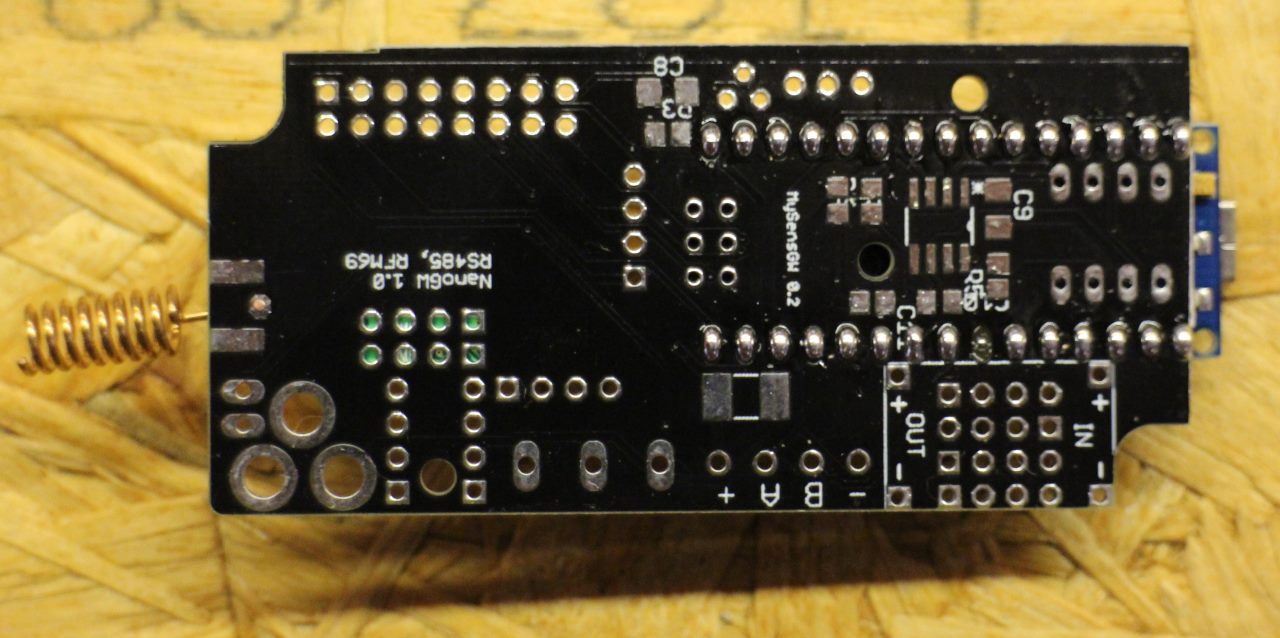

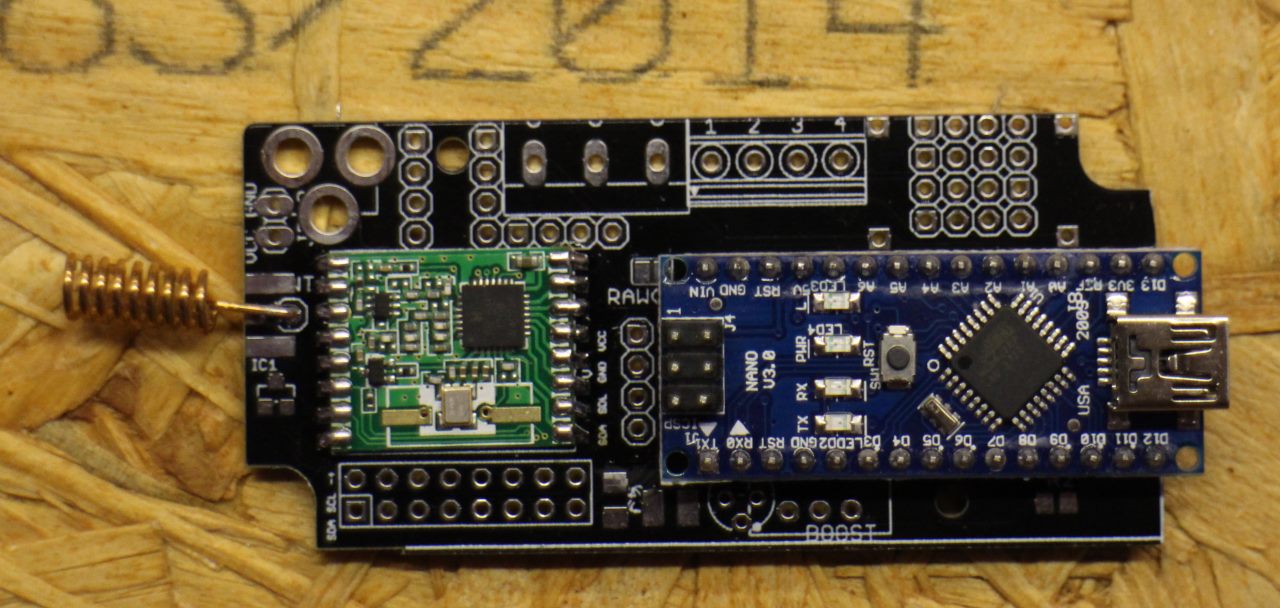

is for RFM69 or RS$85 (SMD or DIL) enter image description here enter image description here State: Beta

MySensors/HM easyPCB

Communication via

  • RFM69(H)W (868MHz and "W" Version recomended "HW" is not for all countries...), or
  • CC1101 (868MHz for HomeMatic Protocol)
  • NRF2401 (for mySensors 2,4 GHz)
  • RS485 with Max487 for MySensors or Homematic Wired

Connectors for

  • N-Module Extensions
  • Homematic-Universal PCB from Papa
  • Grove Connectors but in 2,54mm raster
  • Connector for screws or clamping
  • more Sensors (I2C or Digital pin with Interupt)
  • ATSHA204 (SMD solder)

Power via

  • Step-Up
  • Step-Down ("mini360")
  • Linear-Regulator

Case

  • Box2252
  • 59x65 (China Noname)
  • 67x98 (China Noname) Many options with many drills
  • Status Alpha, not much tested.

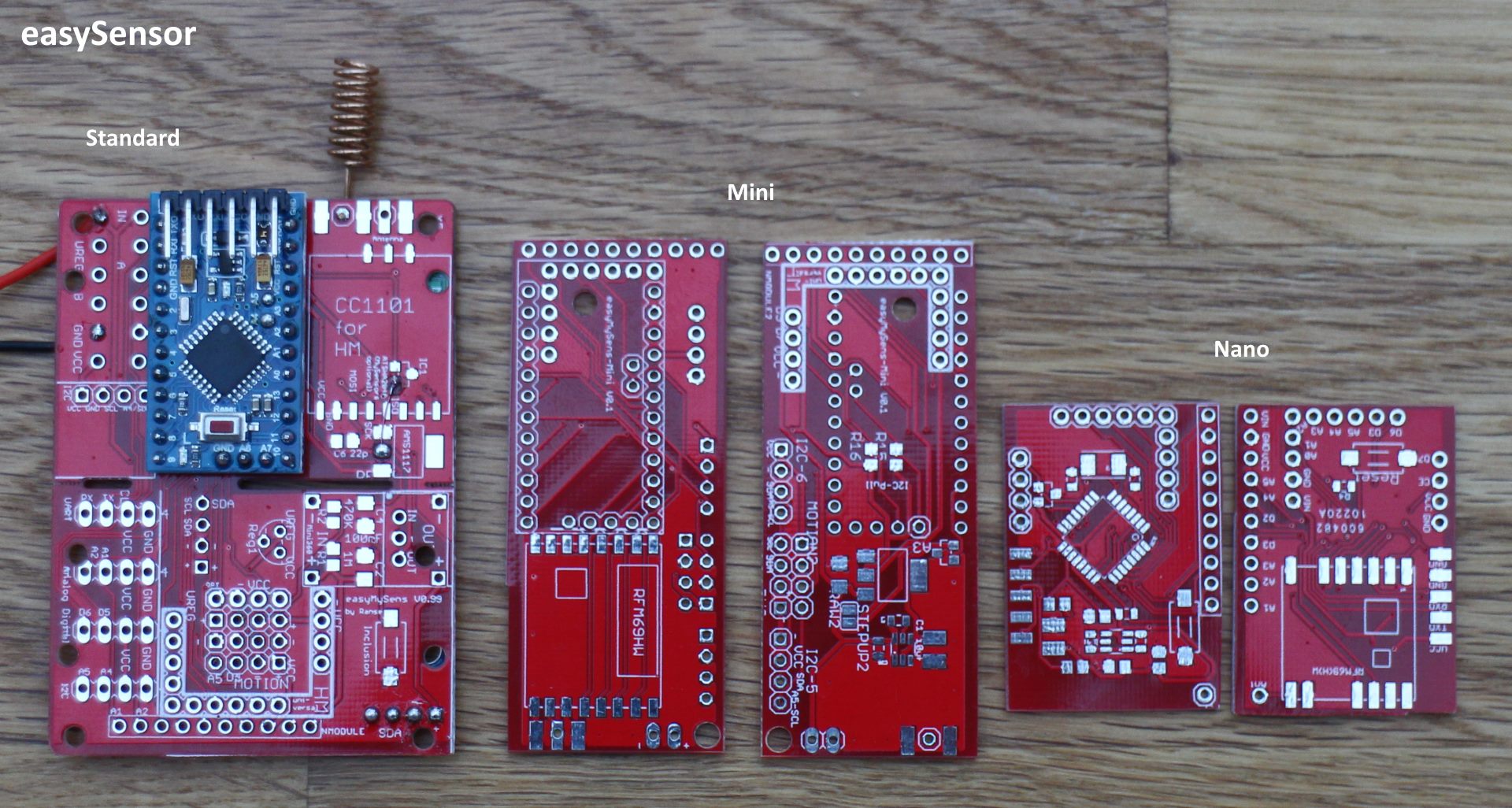

enter image description here enter image description here

Important Hint:

Most Parts are optional. Use only what you need! The Senors-PCBs will have errors! Be careful!

Changes / Known Bugs: V01: 1 last-minute connection to "opt" header not knowingly not routed Changes / Known Bugs V10-Standard: One trace has to be cut on Standard PCB One Connection has to be routed manually to VCC
