Arduino Pro Mini board for MySensors,the board is designed for multiple sensors.
Supply
Boards features:
LiOn Battery --> 3.3V - Arduino Pro Mini 8Mhz and 3.3V
5V - Arduino Pro Mini 16Mhz and 5V
AA Battery --> 3V - Arduino Pro Mini 8Mhz and 3.3V

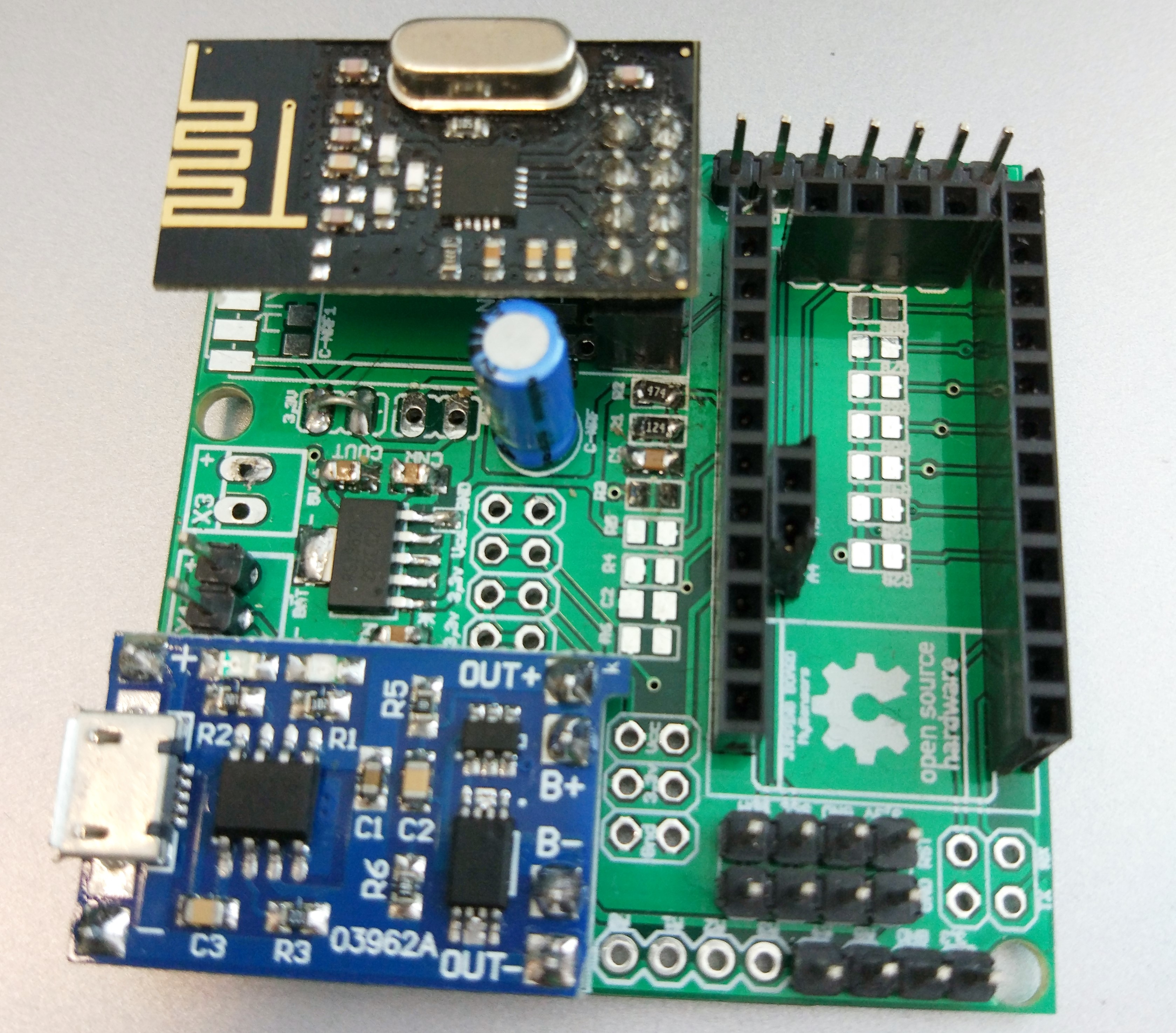

Please note: the sensor images refer to previous version of the board
Disclaimer
If you order or use this you agree to and understand that the author is not liable for any injury or damage howsoever caused and that you use this PCB at your own risk. This is DIY and the author has not made any professional test. This product has not been marked with any certification marks and can't be guaranteed to comply with any standards.
Qty | Value | Device | Package | Parts | Description | MF | MPN | OC_FARNELL | OC_NEWARK | PARTNO | PROD_ID | VALUE | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6 | 1,6/0,8 | 1,6/0,8 | ANT, BAT+, BAT-, GND, IN+, IN- | THROUGH-HOLE PAD | |||||||||
2 | JP1E | JP1 | 3,3V, 5V | JUMPER | |||||||||
1 | M07 | 1X07 | DIGITAL | Header 7 | |||||||||
1 | M08 | 1X08_ROUND | ANALOG | Header 8 | CONN-08437 | ||||||||
2 | PAD-JUMPER-2P | 2P-SMD-1.78X1.27 | J1, J2 | DNP | |||||||||
2 | PINHD-1X1 | 1X01 | JP2, JP4 | PIN HEADER | |||||||||
1 | PINHD-2X2 | 2X02 | JP3 | PIN HEADER | |||||||||
2 | PINHD-2X4 | 2X04 | I2C, SUPPLY | PIN HEADER | |||||||||
9 | R-0805 | R0805 | R2B, R3, R3B, R4B, R5B, R6, R6B, R7B, R8B | ||||||||||
5 | 0,1uF | C-EUC0805 | C0805 | C, C-NRF, C-NRF1, C1, C2 | CAPACITOR, European symbol | ||||||||
2 | 1M | R-0805 | R0805 | R2, R5 | |||||||||
2 | 1uF | C-EUC0805 | C0805 | CIN, COUT | CAPACITOR, European symbol | ||||||||
2 | 470K | R-0805 | R0805 | R1, R4 | |||||||||
1 | 47uF | CPOL-EUE2.5-5 | E2,5-5 | CNRF-1 | POLARIZED CAPACITOR, European symbol | ||||||||
1 | 4k7 | R-0805 | R0805 | R7 | |||||||||
1 | ARDUINO-PRO-MINI-3.3V#NP | ARDUINO-PRO-MINI-3.3V#NP | ARDUINO-PRO-MINI#NP | M2 | Arduino Pro Mini without programming pads | ||||||||
1 | AT25DF512 | 25C040ST | TSSOP8 | IC2 | Serial EEPROM 4K/ 8K , SPI bus | MICROCHIP | 25C040T/SN | unknown | 30C5312 | ||||
1 | ATSHA204A | ATSHA204A | SOT23 | IC3 | |||||||||
2 | JST-XH-02-PIN-ROUND-PAD | JST-XH-02-PIN-ROUND-PAD | JST-XH-02-PACKAGE-ROUND-PAD | X1, X3 | JST XH Connector 2 Pin | ||||||||
1 | MCP170333MB | MCP170333MB | SOT89 | IC1 | 250 mA, 16V, Low Quiescent Current LDO Regulator | ||||||||
1 | RFM69SMD | RFM69SMD | 20X16SMD | RFM69HW | RFM69 module | ||||||||
1 | TP4056-MODULE | TP4056-MODULE | TP4056-LITHIUM-PROTECTED-MODULE | U$1 | |||||||||
1 | U.FL | U.FL | U.FL | J3 | SMD antenna connector- WRL-09144 | CONN-09193 | U.FL | ||||||
1 | WIRELESS-NRF24L01 | WIRELESS-NRF24L01 | WIRELESS-NRF24L01 | NRF24L01+ | 2.4 GHz Wireless Module based on NRF24L01 chip |
