Yo! This project is still a Work In Progress. Instructions, board layouts and BOM might change!

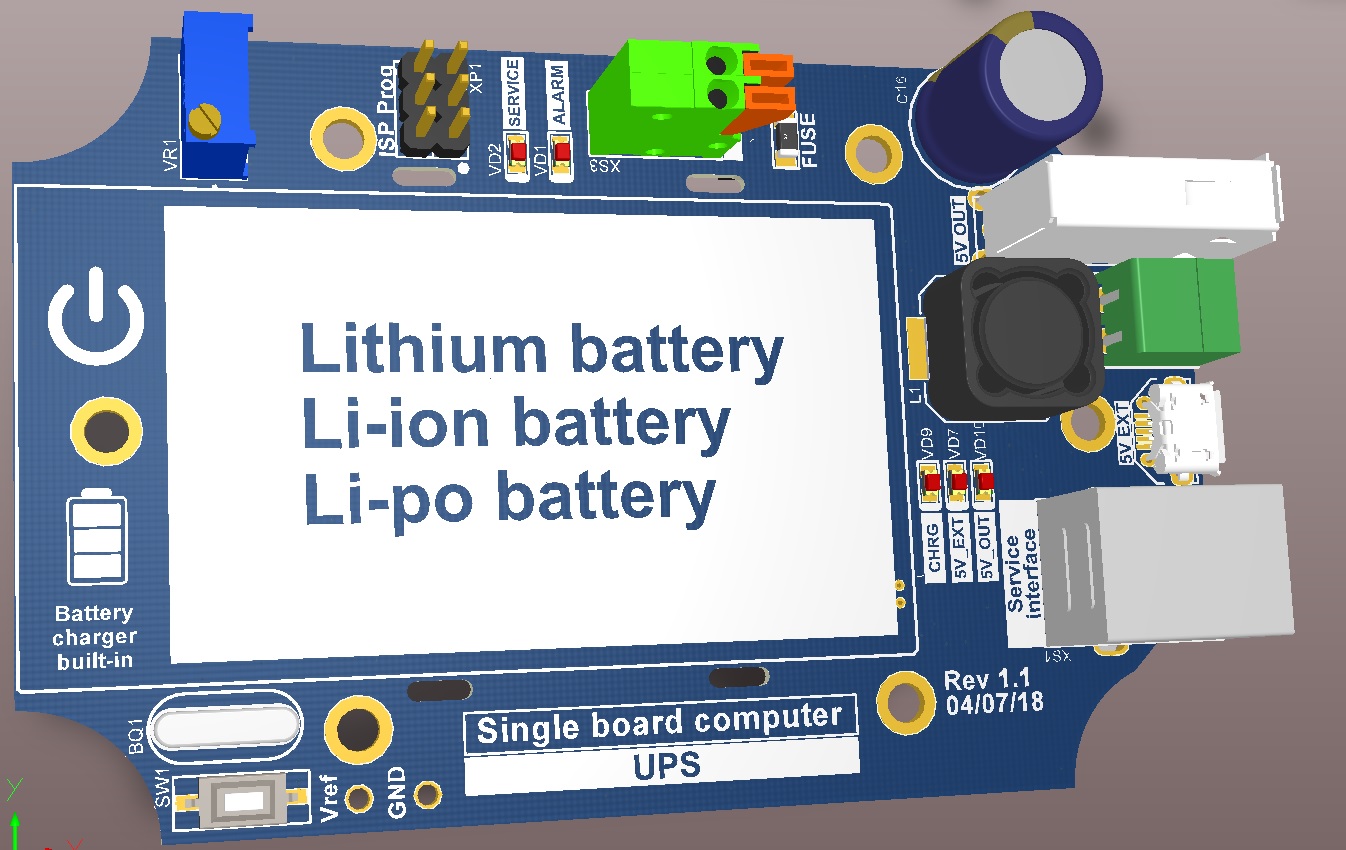

Single board computer UPS
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
6 years ago
Views:
9230
7 Collect
21 Comments
Share
106 Download (4.86 MB)
Make a donation to Kalina

< !!! NEED TO MODIFY !!! >

A week ago I decided to make an uninterruptible power supply for RPI3. In case when the external power supply fails, Raspberry UPS must provide proper shutdown of RPI3.

As a power source I use two types of batteries - a lithium LSH20 and a lithium polymer battery for which a charge circuit is provided. They can be used together or separately (to choose from). The advantage of the lithium battery is a wide temperature range.

I chose a Atmega328p microcontroller as a control unit and as a result - device is completely Arduino compatible.

Raspberry and Raspberry UPS will be communication through the USB B socket (VCP) and I will try to implement a NUT protocol

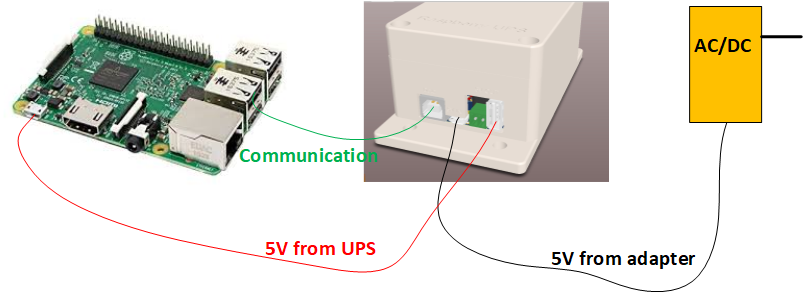

Picture below expalins how this UPS have to connect to RPI3: enter image description here

Feauters:

  • Atmega328 microcontroller;
  • LSH20 and Li-Po batteries;
  • TPS61030 boost converter;
  • designed for use in wide temperatue range;
  • USB-UART converter;
  • operates with standart USB cables;
  • battery test circuit;
  • fuse protected;
  • temperature sensor LM75;
  • 2 user leds and 1 button;
  • custom enclosure.

Project status :

  • Ordering the boards -= PASS =-
  • Soldering the device -= PASS =-
  • Testing the device -= PASS =-
  • Creating the new revision -= work in process... =-
