E73-2G4M04S Breakout
by freynder
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
7 years ago
Views:
8064
8 Collect
3 Comments
Share
160 Download (3.54 MB)
Make a donation to freynder

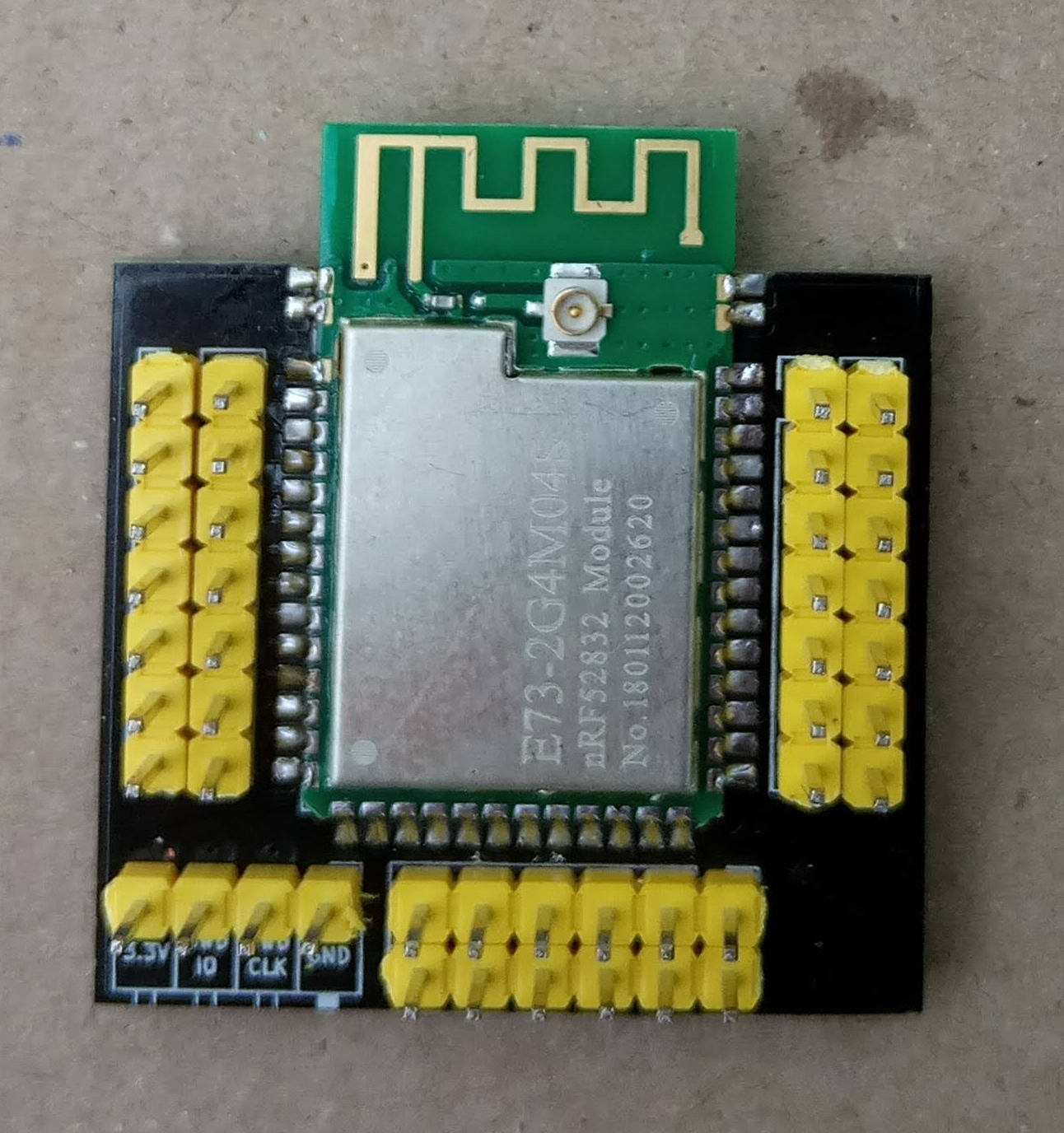

Small breakout board with SWD headers for the EByte NRF52832 Module. All pins are accessible. Dimensions: 34.95mm x 31.14mm

Module available here.

Created in Kicad.
