This is a Port of the MySensors (1.4) Library to the MSP430 Launchpad Platform using Energia.

Tue to the Flash und RAM requirements it´s running only on the MSP430G2553. There are som Limitations caused by the small RAM and other hardware Limitations:

  • Only as SensorNode and not as gateway mode and no repeater mode
  • the library needs 7KB without any serial port stuff, so there is a little space left for the core sensor handling
  • no EEPROM to save settings leading to:
    • no AutoID - Id must be set in Setup()
    • fixed to metric
    • unsure how AUTOPARENT behaves

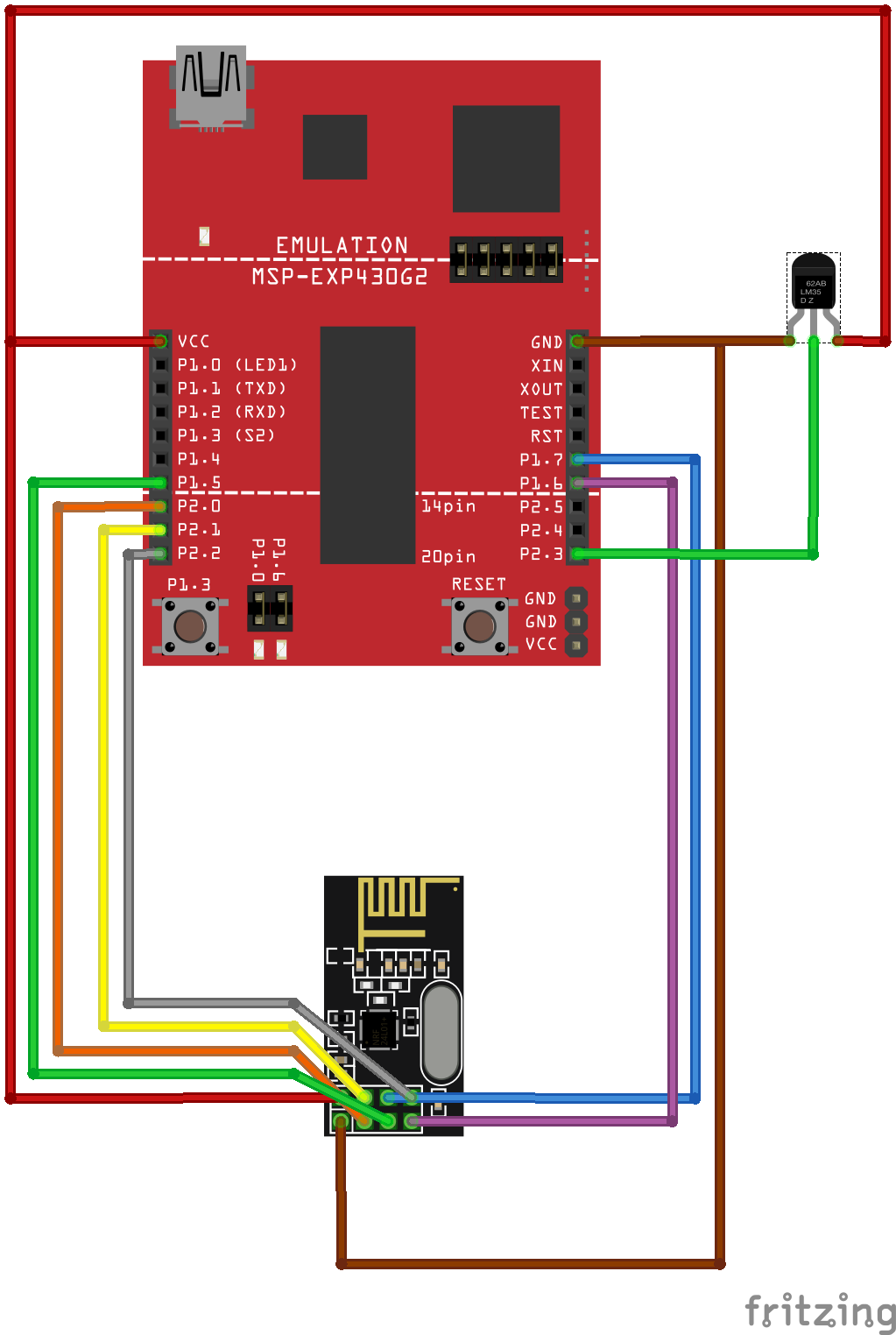

Wiring of the MSP430 is as simple as on the Arduino: wiring example

For testing purposes one exmaple sketch for the Launchpad is included - search for "mspnodeExample".
