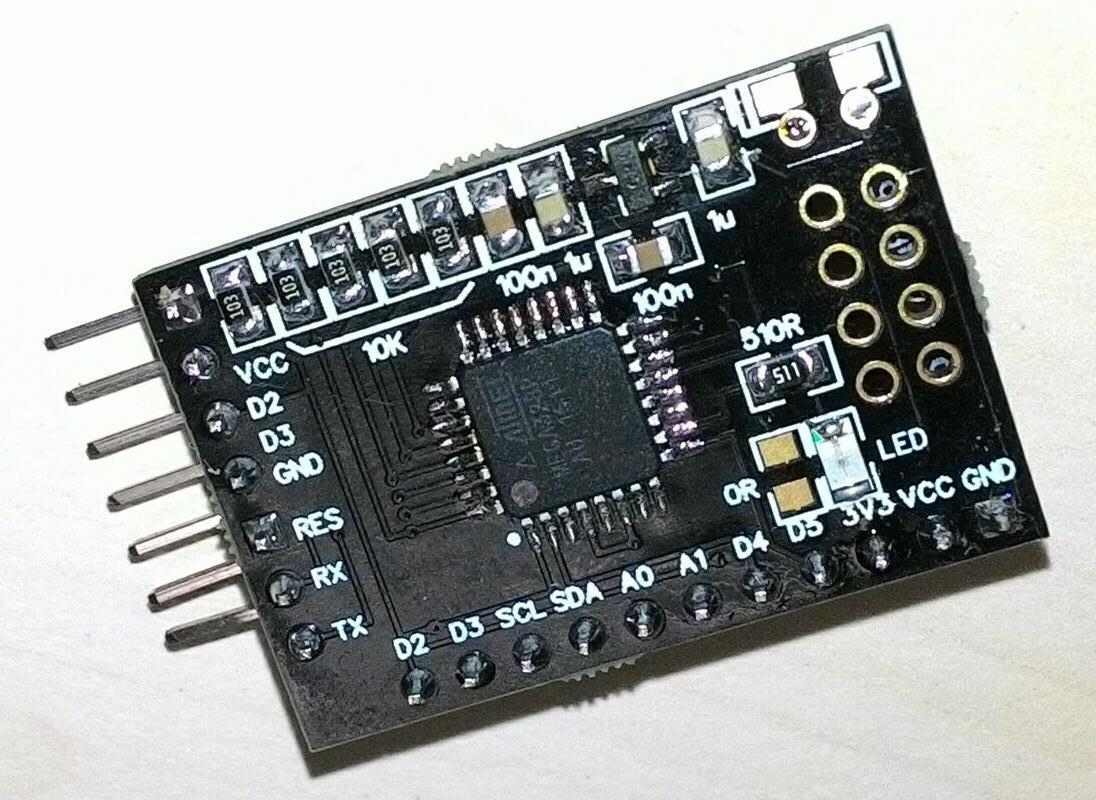

This is another version of a simple node on Atmega328 and NRF24L01.

It is possible to install both standard and SMD version of NRF24 module.
For power of NRF24 used LDO XC6206.

On long side of board present 11-pin header include:

  • D2, D3, D4, D5
  • A0, A1, A4/SDA, A5/SCL
  • GND, 5V, 3.3V

On short side of board present two pin header include:

  • 5V, GND, D2, D3 (for simple connect sensors like DS18B20, DHT22)
  • RES, TX, RX (for connect UART)

Present place to solder pull-up resistors for RES, D2, D3, SDA, SCL signals.
It is also possible to install LED connected between D6 pin and 5V through 510Ohm resistor.
Signal D2 may be connected to IRQ of NRF24 through 0Ohm resistor.

Node is flashed with MySbootloader 1.3, info is here: https://forum.mysensors.org/topic/4991/mysbootloader-1-3pre2-testing

You can order PCB from PCBs.io - 4pcs for $4.58, black 1.6mm PCB

PCB with NRF24 SMD version - tested in hardware
PCB with NRF24 standart version - tested in hardware

Example of usage (module to connect PIR sensors of alarm system):

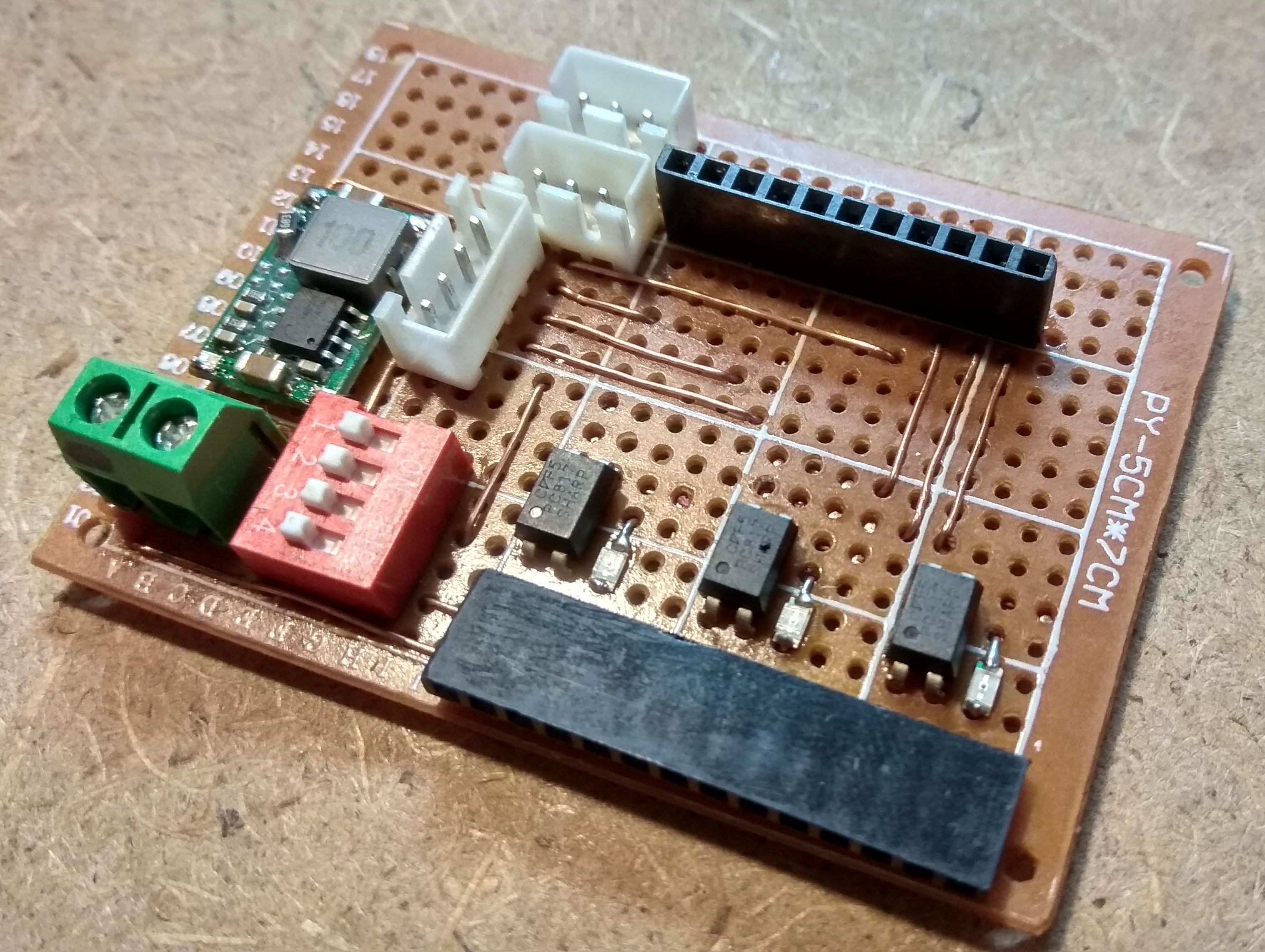

main board

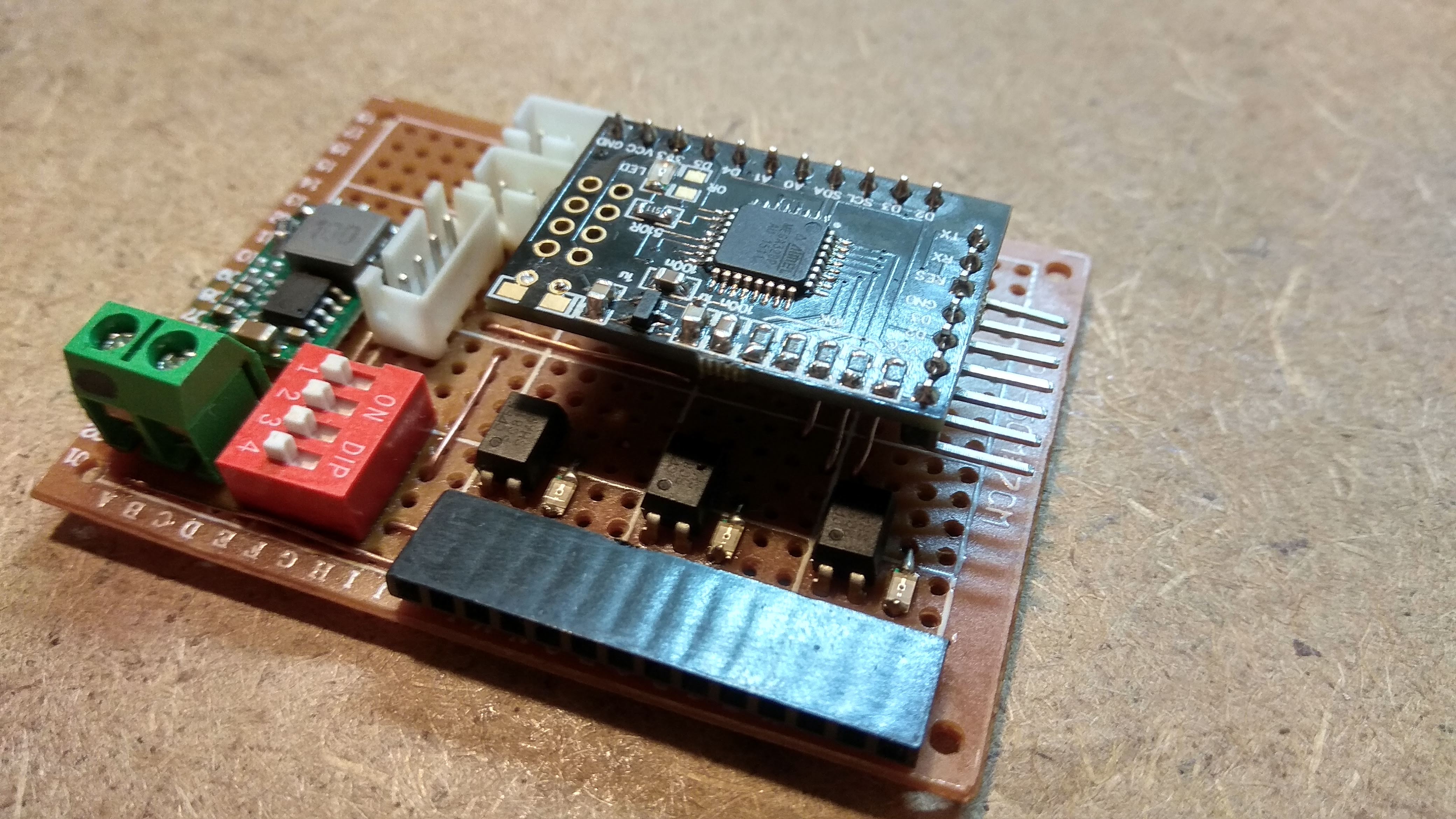

main board with core board

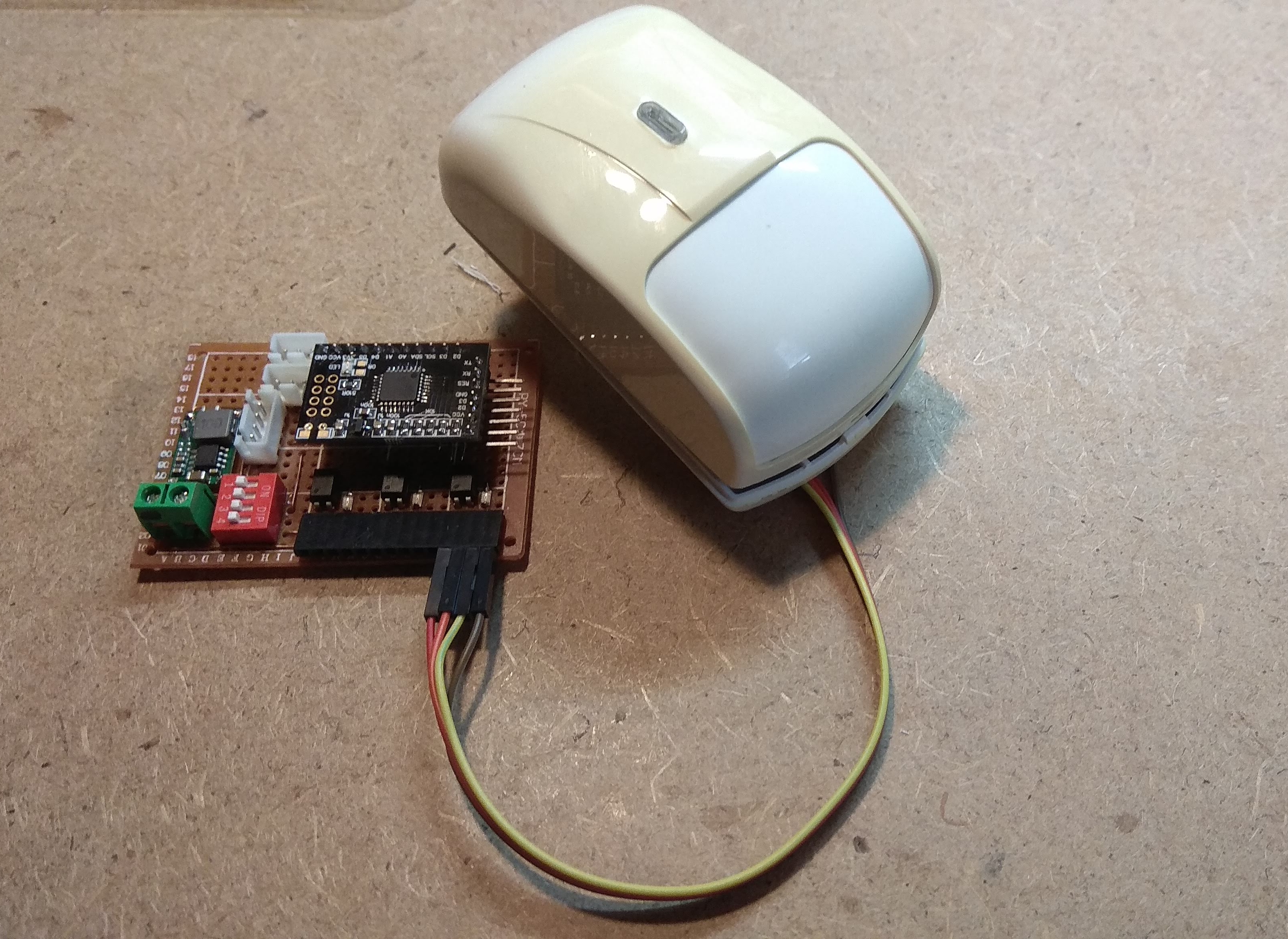

connection of PIR
