NRF24 to RFM69 adapter
License:
MIT
Created:
6 years ago
Updated:
6 years ago
Views:
4615
3 Collect
0 Comments
Share
36 Download (4.86 MB)
Donate to support Open Hardware

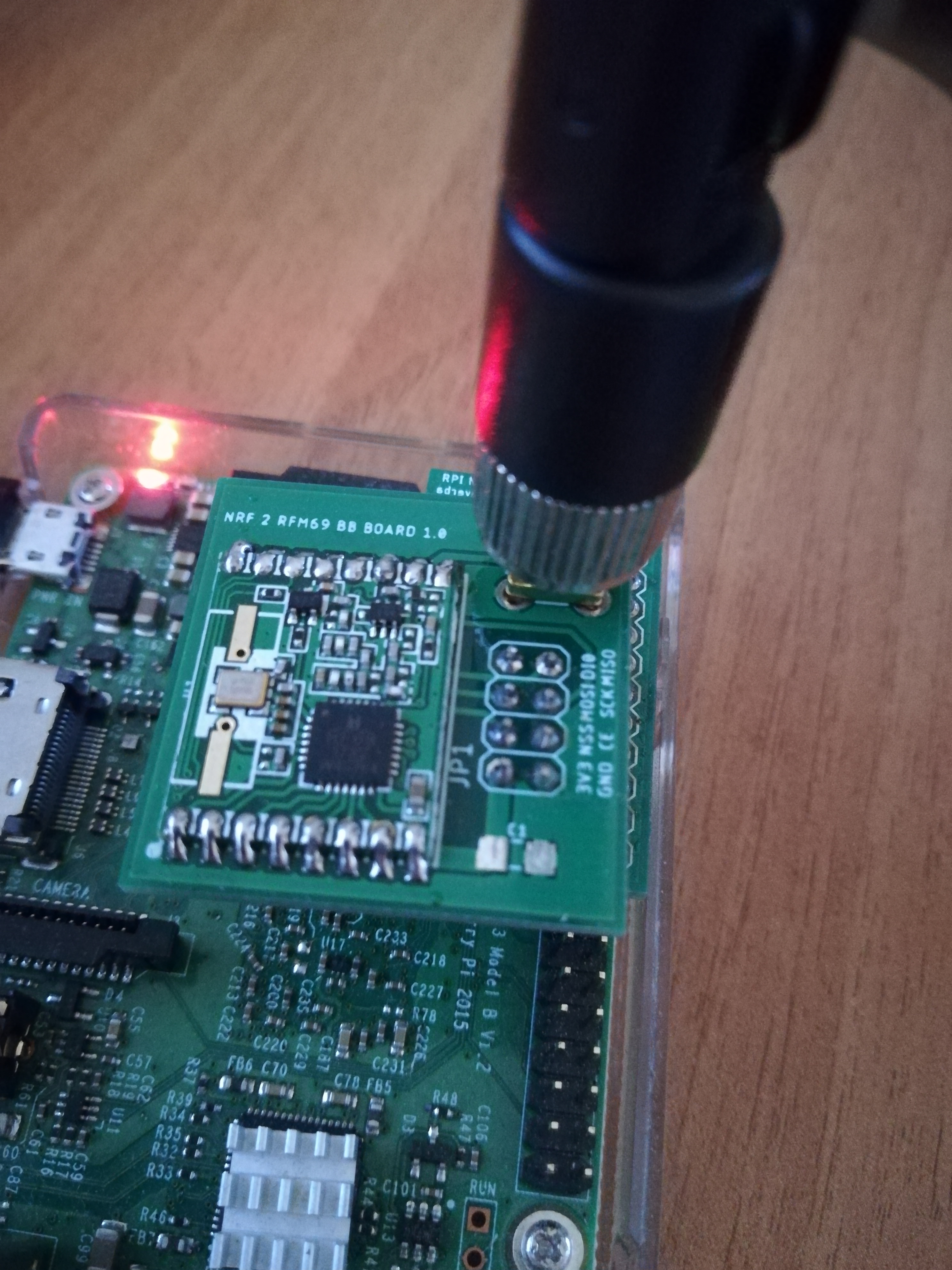

Simple adapter for RFM69H(W). You can use a RFM69H(W) radio using previous NRF24 socket.

All pins are mapped 1:1 to NRF24.

There is place (if you need) for a capacitor (reality, never used with RFM69).

You can use big gain antennas or smaller antenna (I use 5dbi on amplified radio and single coil on not-amplified).

Pay attention: NRF have PINs tolerant to 5V, RFM no. So, power and get/send data at 3v3 and not 5V. But, if you use battery nodes, probably you want use 3v3 from start :)
