Super Efficient Boost Converter
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
7 years ago
Updated:
5 years ago
Views:
6308
11 Like
4 Collect
4 Comments
41 Download (610.18 kB)

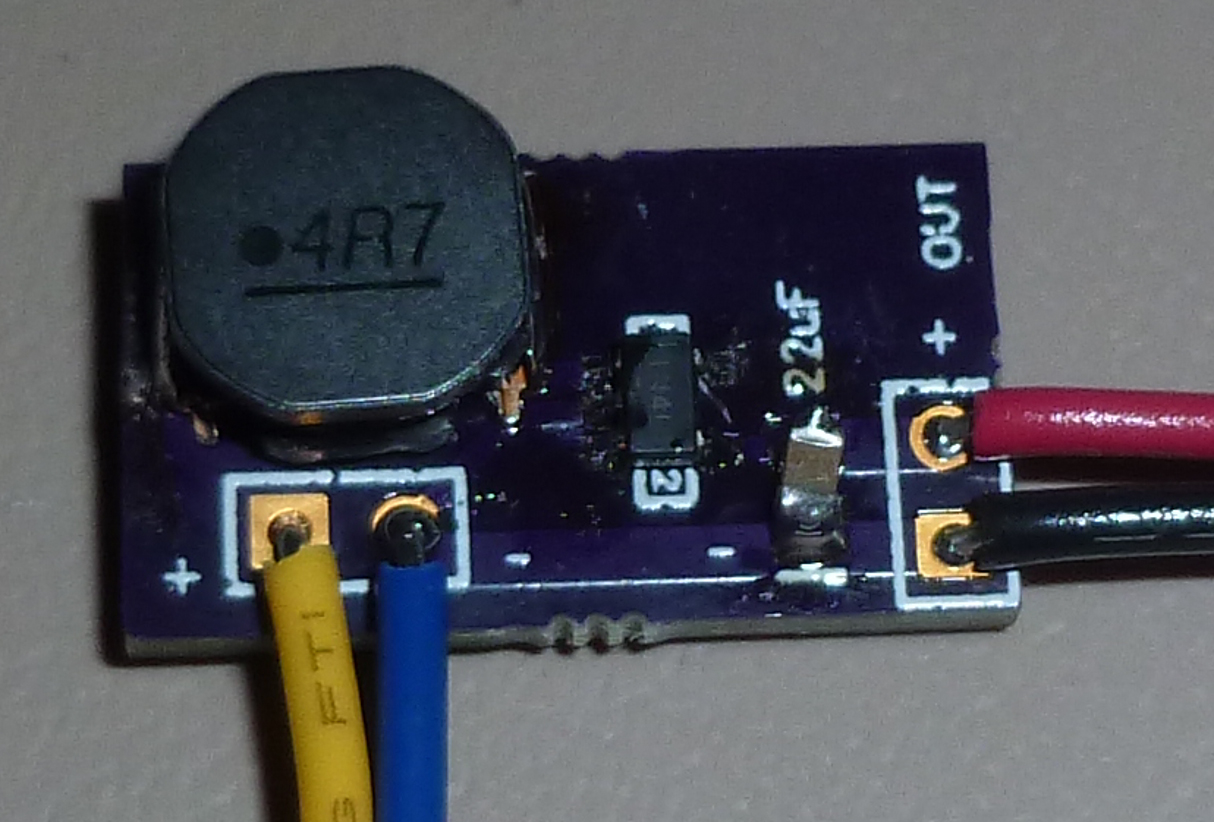

Donate to support Open HardwareThis board uses a relatively new boost converter chip from Texas Instruments: http://www.ti.com/lit/ds/symlink/tps61322.pdf
It has several noteworthy advantages:
- Quiescent current of 6.5uA.
- Relatively low cost compared to comparable chips.
- Very high boost efficiency, even at low currents (see chart in photos section). In fact, in this metric it by far outperforms all the other chips that I'm aware of.
- Low part count, which means faster and easier assembly.
- Nominal minimum input voltage of 0.9v. On the one I tested, the minimum was actually lower at 0.79v from a cold start.
In this project I'm using the TI boost chip with a 3.3v fixed output, but a simple substitution of another chip in the same series will produce 5v, or other fixed voltages depending on the chip used.
