Yo! This project is still a Work In Progress. Instructions, board layouts and BOM might change!
YJ-16048 nRF52832 Breakout Board
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
6 years ago
Updated:
6 years ago
Views:
5360
2 Collect
0 Comments
Share
78 Download (1.05 MB)
Donate to support Open Hardware

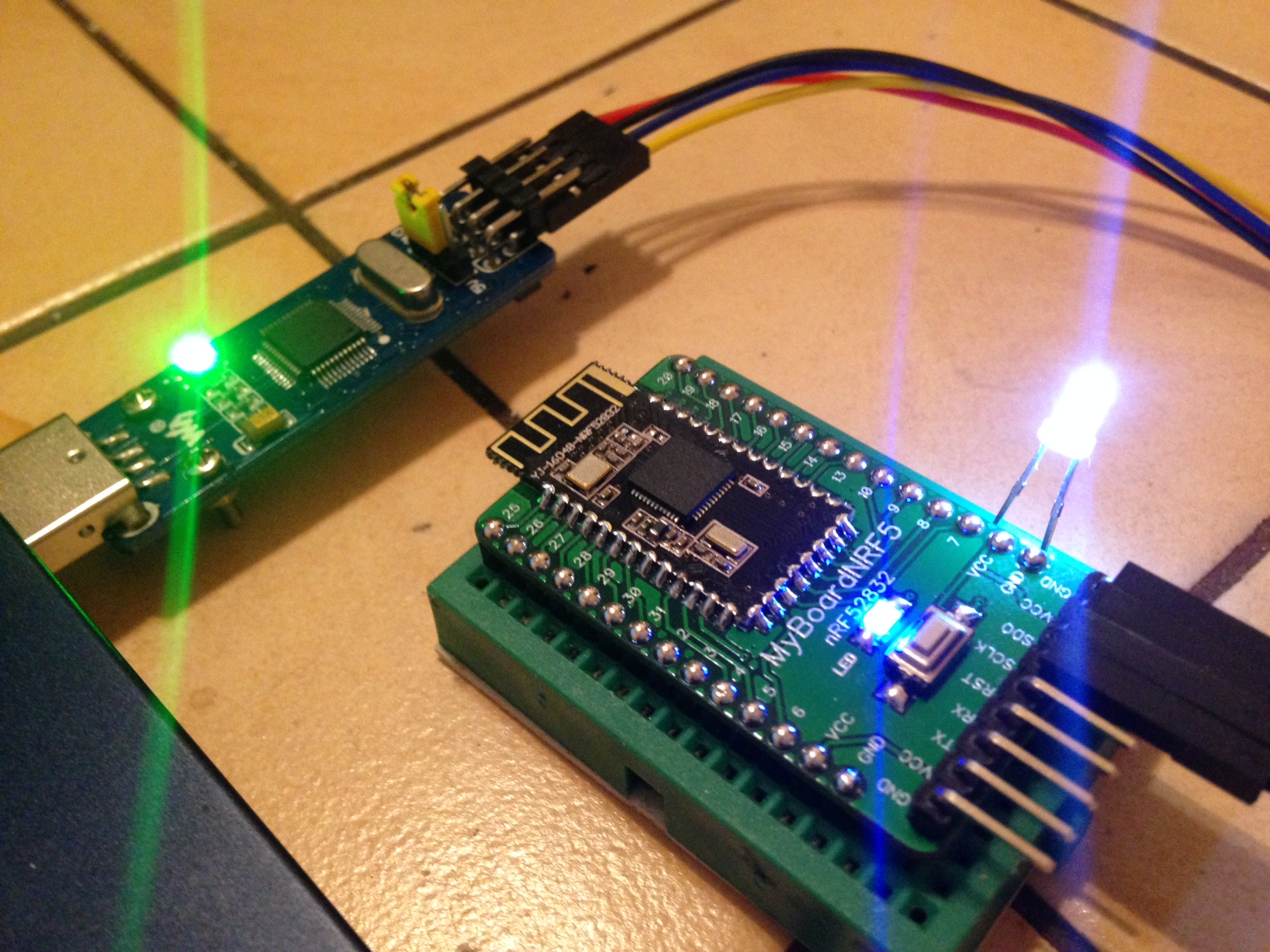

Small breakout board with SWD & TTL to USB headers for the YJ-16048 NRF52832 Module. All pins are taken out. Adapted for boards MyBoardNRF5 nRF52832 in Arduino IDE. Easy start in Arduino IDE development environment, 100% programmability. Dimensions: 42mm x 25mm

You can download the files for self-ordering PCB on the tab - " design files"

Module available here

Created in DipTrace.
