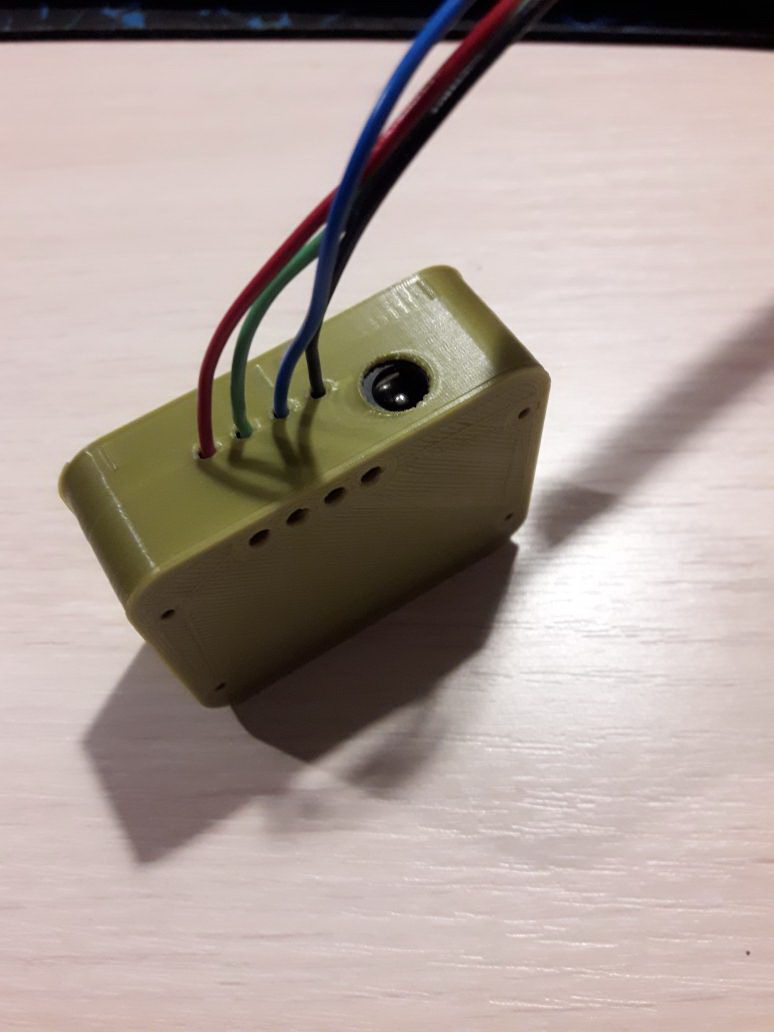

Led RGB controller

MySensors led controller Focus on the use with the library MySensor

Technical Specification

  •    Small footprint, 45 mm x 45 mm
  • Arduino IDE 1.6.x compatible
  • External power supply 12-25v, 5A
  • Mosfet x3 (Red, Green, Blue) to dim and change the color of your RGB LED strip
  • 64kb SPI flash / e2prom onboard. Useful for over-the-air firmware updates. Also possible to use memory for a local sensor data cache
  • ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support
  • SMD radio module NRF24
  • IR sensor
  • Micro USB formfactor program connector UART
  • Resrt button
  • Inclusion button
  • Factory programmed with DualOptiBoot bootloader

Compatible IR control

  • 24 button IR control

Program has sensors/controls

  •  ON/OFF st•atus
  •  Light programs
    0 — Color 1 — link 2 — Stroboscope 3 - Rainbow
  • Program speed
  • Brightness, for all programs
  • Color. Set static color #RGB format
  • RGB connection profile: RGB;GRB;RBG;BRG;BGR;GBR& Software switch chanals
  • Change NodeID
