MDMSTempHum

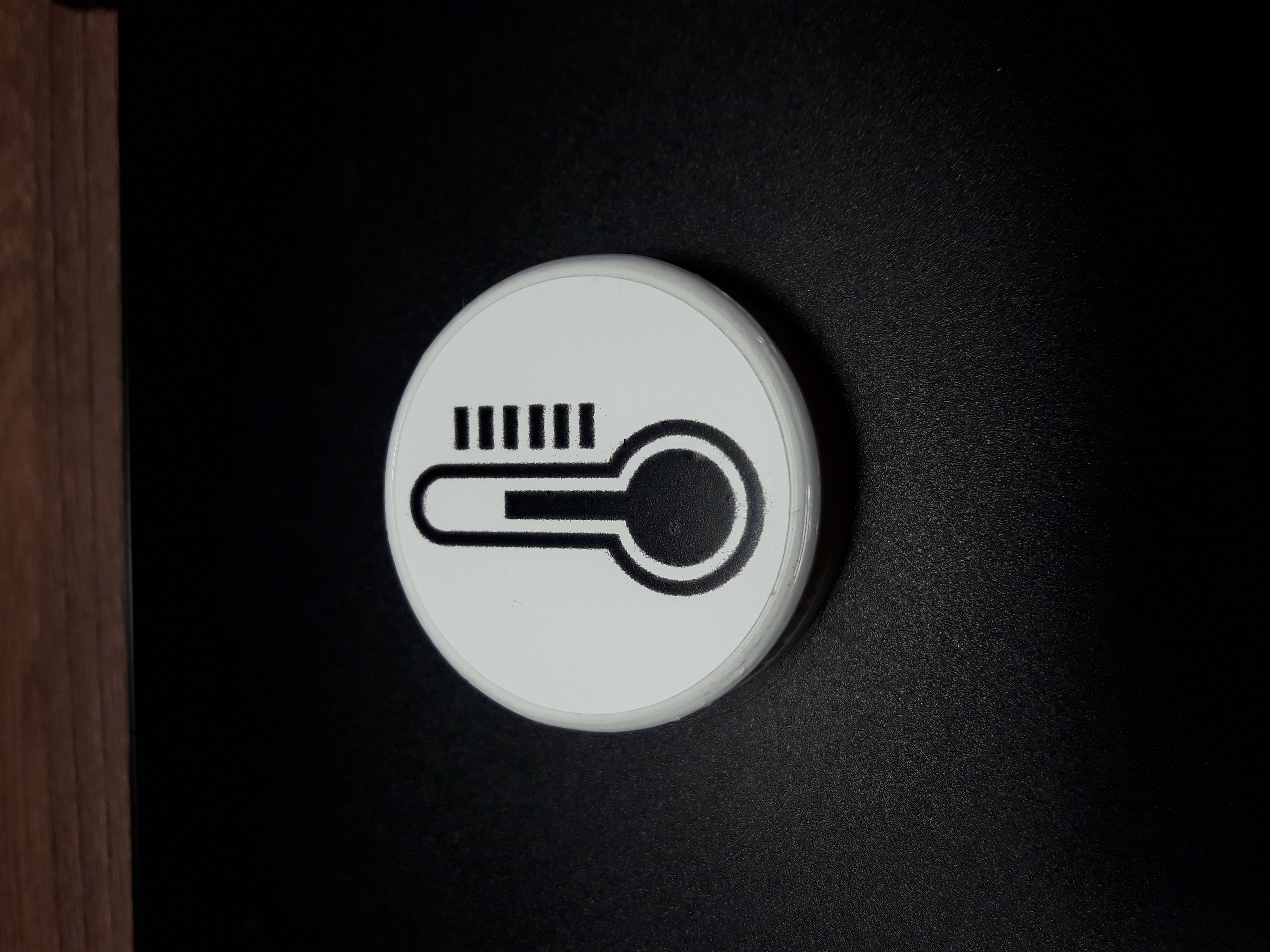

MajorDomo MySensor Temperature Humidity sensor

Technical Specification

  • Small footprint, D 38 mm x H 12.5 mm

  • Arduino IDE 1.6.x compatible

  • Internal power supply CR2032, 3V

  • ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support

  • SMD radio module NRF24

  • SHT20 temp_hum sensor

  • Micro USB formfactor program connector UART

  • Reset button

  • Inclusion button
