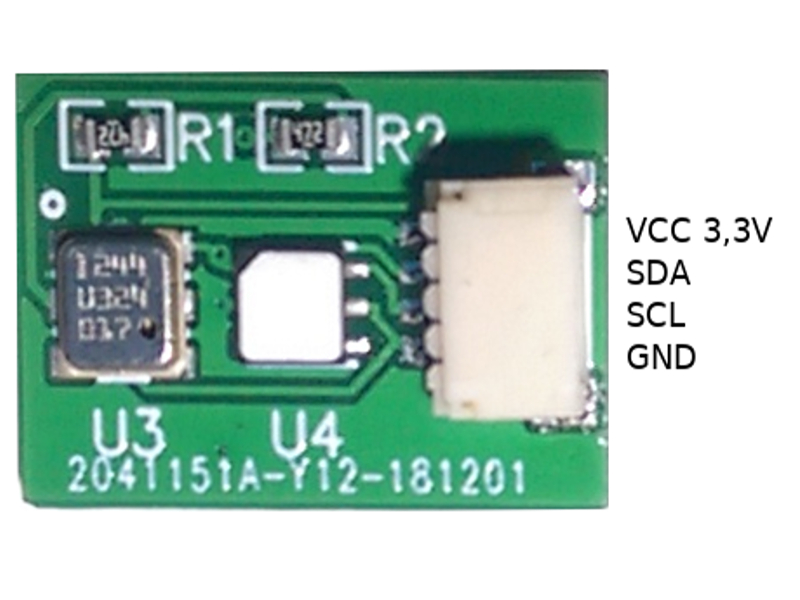

The Temperature-Humidity-Pressure Sensor is fully compatable with Arduino, Raspberry PI, ESP8266, ESP32.

The Temperature-Humidity-Pressure Sensor is based on BMP180 and SI7021 sensors.

Pressure range: 300 ... 1100hPa ±0.02 hPa (+9000m ... -500m ± 0.17m relating to sea level)

Precision Relative Humidity Range: 0 to 80% RH ± 3% RH

High Accuracy Temperature Range: –10 to 85 °C ±0.4 °C

Comunication interface: I2C

Supply voltage: 3,3V 1.8V ... 3.6V

!!!Warning do not power the sensor with 5V, 5V power supply will destroy your sensor!!!
