Mini weather station with e-ink 2.9 Inch
License:
GPL 3.0
Created:
4 years ago
Updated:
3 years ago
Views:
50056
8 Collect
4 Comments
Share
79 Download (25.29 MB)
Donate to support Open Hardware

Mini weather station with an electronic ink display 2.9 Inch, very low power consumption, small device.

-- GitHub --

-- Buy on tindie.com --

-- Buy on ebay.com -- - Standart version.

-- Buy on ebay.com -- - Extended version.

What is it?

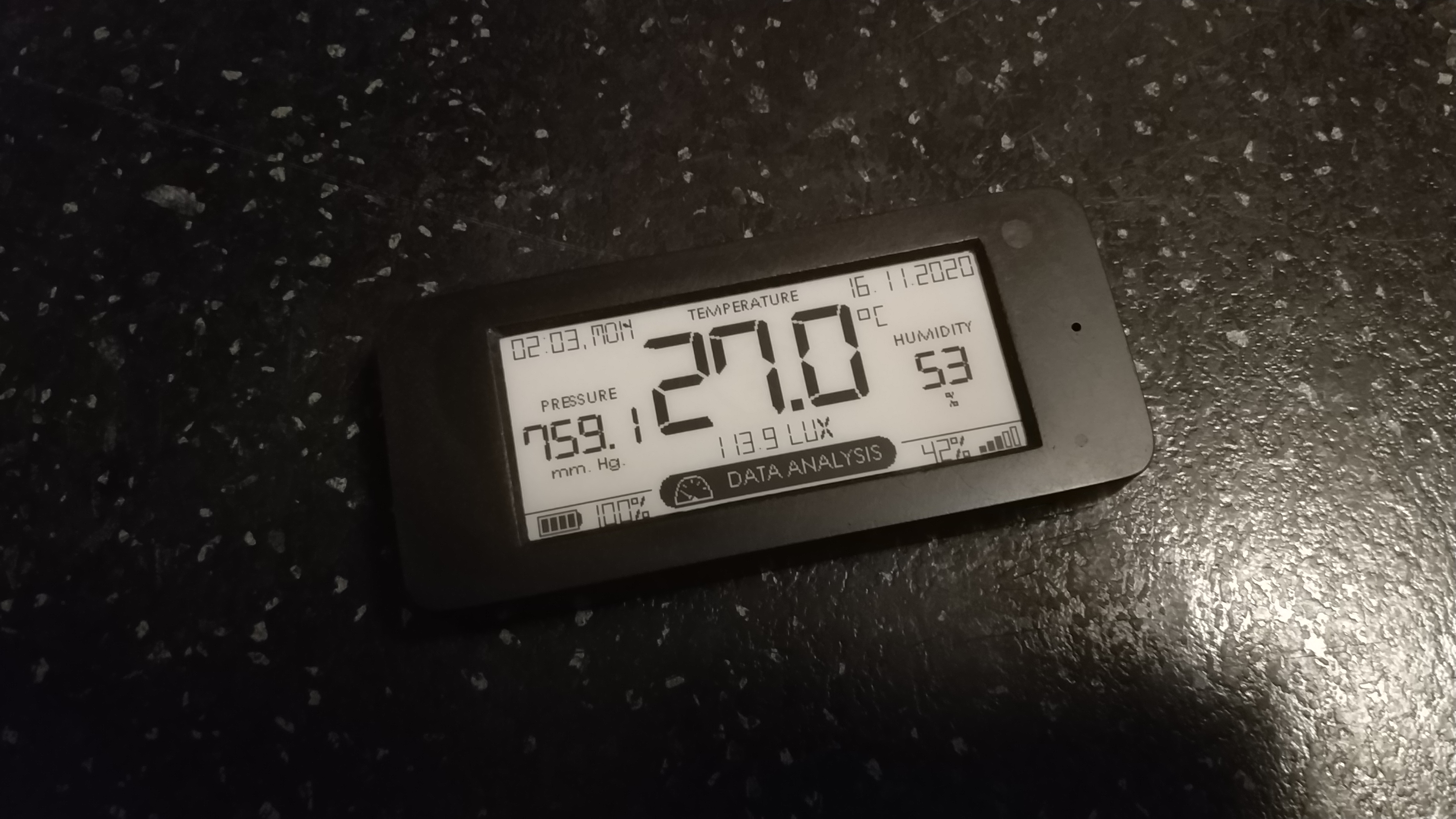

It is a compact wireless mini weather station with a 2.9 Inch e-paper display with screen resolution of 296x128 pixels. The device has an industrial look, at least I wanted to achieve this. The sensor has very good energy efficiency. Powered by nRF52 multi-protocol chip (BLE, Zigbee, Thread, ESB). The device comes preinstalled with MySensor Protocol (ESB) based wireless networking software - www.mysensors.org. Can use both a ready-made device and a device for developing your own software right away.

You can see how it works in my small video - https://youtu.be/0yZfeFMDKKY

Can use both a ready-made device and a device for developing your own software right away

  • RF module MINEW MS50SFA supplied in several modifications with nRF52810, nRF52811, nRF52832 chips or RF module EBYTE E73-2G4M08S1C with nRF52840 chip.

  • Arduino development environment compatible.

  • The project uses e-paper display (GDEH029A1 OR GDEM029T94) from Dalian Good Display Co.ltd.

  • Very long runtime with one or two CR2450 battery.

  • Operation with CR2430, CR2450, CR2477 OR 2AAA batteries (300mA - 1900mA)

  • Consumption in data transmission mode - 8mA, in sleep mode 3.7-4.7μA.

  • The ability to install different sensors (si7020, si7021, sht20, sht21, htu20d, htu21d or bme280)

  • Inside the case, magnet are installed for fixing to magnetic surfaces.

For instructions on installing support for the boards, see on my github (readme)

My other similar projects:

V4 Temp&Hum&Press sensor with E-Ink 1.54

Mini Temp&Hum sensor with E-Ink 1.02
