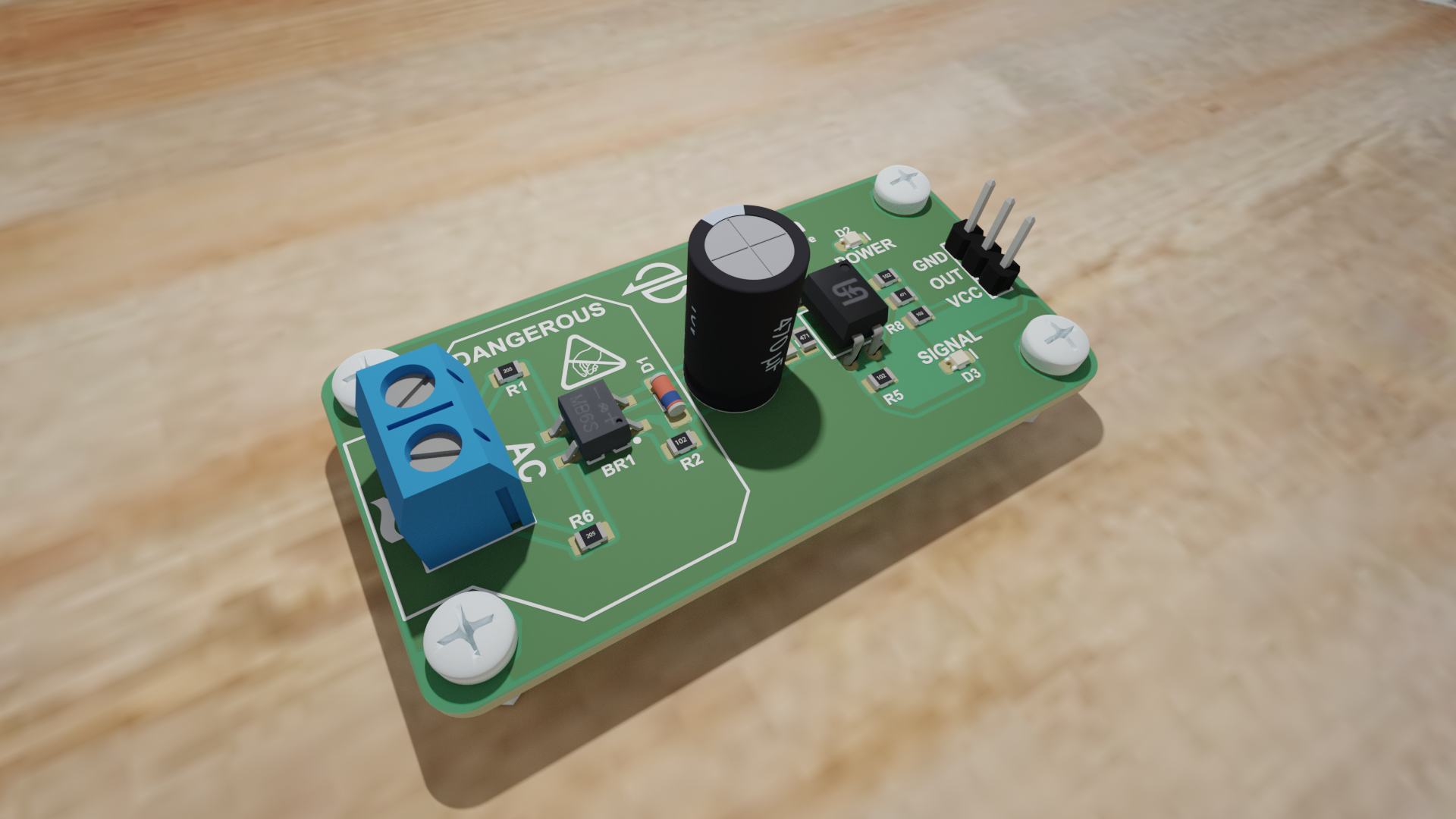

Make a donation to ElecfarmThis design uses the optoisolator to detect the mains electricity. It allows a microcontroller to get information about whether 110/220VAC voltage appears. Specifications
- Logic voltage 1.8V, 3.3V, 5.0V
- 110/220VAC detection
- LEDs indication
Product includes professional library, confirmed schematic design. Our design has also a full output job and active Bill of Materials.
The design in Altium Designer files are from https://elecfern.com/product/detecting-mains-voltage-module/
| PartNumber | Manufacturer | Description | Category | Quantity | Unit | Packaging | Process Technology | Designator | NI Marking |
|---|---|---|---|---|---|---|---|---|---|
| MB6S-E3/45 | Vishay General Semiconductor - Diodes Division | DIODE-BRIDGE,600V,500mA,TO-269AA,1 V @ 400 mA | DIODE | 1 | pcs | Rail/Tube | SM | BR1 | |
| EKZE160ELL471MH15D | United Chemi-Con | CAP-ALE,470uF,Radial-Can,±20%,16V,3000 Hrs @ 105°C | CAPACITOR | 1 | pcs | Bulk | DIP | C2 | |
| GCJ21BL81H104KA01L | Murata Electronics | CAP-CER,100nF,0805,±10,50V,X5R | CAPACITOR | 1 | pcs | Tape and Reel | SM | C3 | |
| ED500/2DS | On Shore Technology Inc. | CONN-TERMINAL BLOCK,ED500/DS,14-22 AWG,300V,5.0mm | CONNECTOR | 1 | pcs | Bulk | DIP | CN2 | |
| ZMM5.1 | Diotec Semiconductor | DIODE-Zener,5.1V,±5%,500mW,SOD-80 | DIODE | 1 | pcs | Tape and Reel | SM | D1 | |
| LTST-C171KRKT | Lite-On Inc. | LED-INDICATION,Red,Clear,2V,30mA,0805,Standard | LED | 1 | pcs | Tape and Reel | SM | D2 | |
| QTLP630C4TR | Everlight Electronics Co Ltd | LED-INDICATION,Green,2.1V,30mA,0805,Standard | LED | 1 | pcs | Tape and Reel | SM | D3 | |
| PEC03SAAN | Sullins Connector Solutions | HEADER-MALE,1x3,2.54mm,Tin,Straight | HEADER | 1 | pcs | Bulk | DIP | H1 | |
| 97790503111 | Würth Elektronik | HARDWARE&FASTENER-BOLT,Nylon,M3,5mm | HARDWARE&FASTENER | 4 | pcs | ASSY | MP1, MP2, MP3, MP4 | ||
| 25508 | Keystone Electronics | HARDWARE&FASTENER-STANDOFF,Nylon,M3,Female-Female,6mm | HARDWARE&FASTENER | 4 | pcs | ASSY | MP5, MP6, MP7, MP8 | ||
| AC0805JR-071ML | YAGEO | RES-SMD,1M,0805,±5%,1/8W | RESISTOR | 2 | pcs | Tape and Reel | SM | R1, R6 | |
| RC0805JR-071KL | YAGEO | RES-SMD,1K,0805,±5%,1/8W | RESISTOR | 3 | pcs | Tape and Reel | SM | R2, R4, R7 | |
| AC0805JR-07470RL | YAGEO | RES-SMD,470R,0805,±5%,1/8W | RESISTOR | 3 | pcs | Tape and Reel | SM | R3, R5, R8 | |
| TPC817A C9G | Taiwan Semiconductor Corporation | ISOLATOR-TRANS,DC,80V,50mA,5kV,4-DIP | ISOLATOR | 1 | pcs | Rail/Tube | SM | U1 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 3 years ago | 2 | 60 × 30 |
