ADP5054 Quad Buck Regulator For FPGA And Processor
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
3 years ago
Updated:
3 years ago
Views:
2209
0 Collect
0 Comments
Share
16 Download (7.02 MB)
Make a donation to Elecfarm

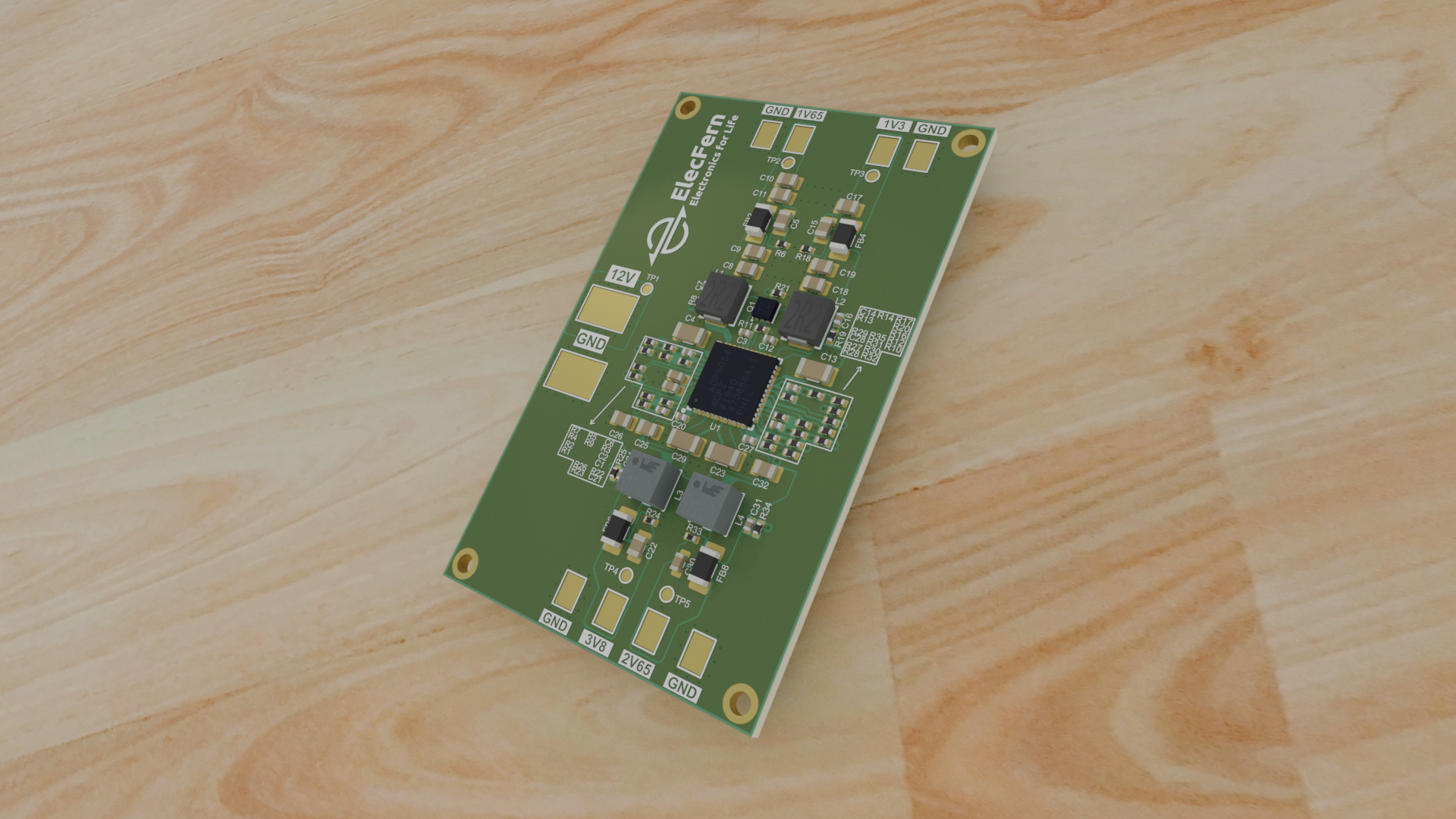

ADP5054 Quad Buck Regulator For FPGA And Processor The ADP5054 has four high performance buck regulators that meets demanding performance and board space requirements for circuit including FPGA and Processor.

Channel 1 and Channel 2 integrate high-side power metal-oxide semiconductor field effect transistors (MOSFETs ) and low-side MOSFET drivers. Channel 3 and Channel 4 integrate both high-side and low-side MOSFETs to deliver an output current of 2.5 A.

Applications

  • FPGA and processor applications
  • Small cell base stations
  • Security and surveillance
  • Medical applications

Product includes professional library, confirmed schematic design. Our design has also a full output job and active Bill of Materials.

The design in Altium Designer files are from https://elecfern.com/product/adp5054-quad-buck-regulator-for-fpga-and-processor/

#PowerCircuit #AnalogDevices #PCBDesign #CircuitDesign
