This is about a Din Rail module (2 of them) providing 6 pilot wire indépendant commands (4 orders each).
Module is compatible with mysensor and using nrf52832
In production since nearly one year at home so it's reliable
Power supply is integrated in the module itself

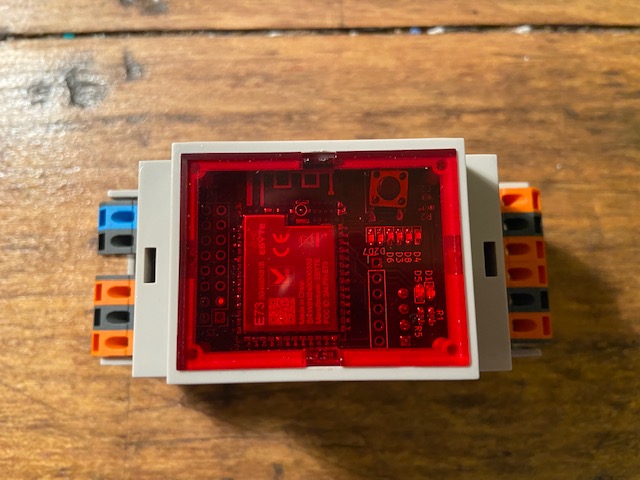

The setup is split in two boards. The top one is holding the NRF and leds, the bottom one is holding the power supply and pilot wire control.
The top module is equiped with leds:
For the wire connections it is possible either to use screw module or Wago module. Wago is reserved to single copper wire.
Please be extremely carreful as this is powered up by 230v AC and this is exposed within the module !
Every two pilot wire can be supply from an independant power source. This is especially usefull when using differential brakers that could consider differential current from pilot wire too high and then cut off !
Reference | Quantity | Value | Footprint | Datasheet |
---|---|---|---|---|
C1 C2 | 2 | 100nF | Capacitor_SMD:C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | ~ |
D1 D2 D3 D4 D5 D6 D7 D8 | 8 | LED | LED_SMD:LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | ~ |
J1 | 1 | Conn_01x04_Male | Connector_PinHeader_2.54mm:PinHeader_1x04_P2.54mm_Vertical | ~ |
J2 | 1 | Conn_01x06_Male | Connector_PinHeader_2.54mm:PinHeader_1x06_P2.54mm_Vertical | ~ |
J3 | 1 | Conn_02x08_Odd_Even | Connector_PinHeader_2.54mm:PinHeader_2x08_P2.54mm_Vertical | ~ |
R1 R2 R5 R6 R8 R7 R9 R11 R10 | 9 | 1k | Resistor_SMD:R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | ~ |
R3 R4 | 2 | 10k | Resistor_SMD:R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | ~ |
SW1 | 1 | SW_Push | Button_Switch_SMD:SW_Push_1P1T_NO_6x6mm_H9.5mm | ~ |
U1 | 1 | E73-2G4M04S-52832 | RF_Module:E73-2G4M04S | http://www.cdebyte.com/en/downpdf.aspx?id=243 |
Name | Size | # Downloads |
---|---|---|
DIN_6xPilotes_Gite_1.ino | 10.62 kB | 145 |
