Smart Light Switch 220v
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
9 years ago
Updated:
8 years ago
Views:
6606
3 Collect
0 Comments
Share
132 Download (567.08 kB)
Donate to support Open Hardware

This is my adaptation based on Aproxx design!

I wanted to use ATMEGAS328 to make te overall project cheaper! So I picked Aproxx idea and developed my owne PCB!

This project is still under development, I what to order the board and teste it myself before submitting the link to the store order!

I will be using DirtyPcb to print!

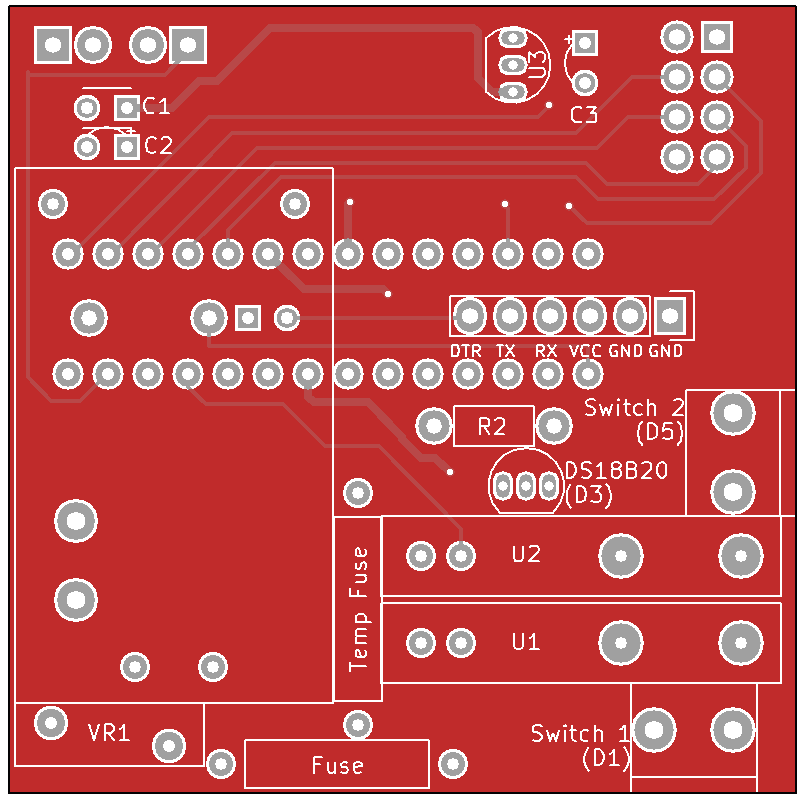

enter image description here

I added a interface to burn sketches into the ATMEGA328 with a FTDI!

PCB Specs:

  • 1,6 PCB
  • Signal Trace: 0,5mm
  • DC Power Trace 1mm
  • AC Power to HLK-PM01 Trace: 2mm
  • AC Power from Relays: 3,5mm

Component List:

  • ATMEGA328
  • NRF24L01
  • HLK-PM01 5v
  • F1: Temp Fuse 73º
  • F2: Slow Blow Fuse 250v 0.2A
  • VR1: 230v AC Varistor
  • C1: 0.1 uF Capacitor
  • C2: 100uF Capacitor
  • C3: 4.7uF Capacitors
  • R1: 10k Resistor
  • R2: 4K7 PullUp Resistor
  • U1: Solid State Relay G3MB-202P
  • U2: Solid State Relay G3MB-202P
  • U3: LE33ACZ 5V to 3.3V Converter
  • T1: Dallas Temperature Sensor DS18B20

More informations in a near future :)
